Explore 70 SA v4

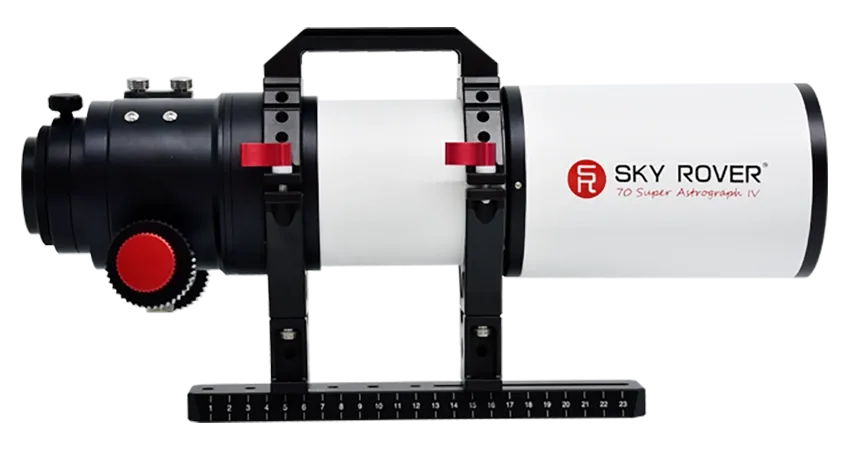

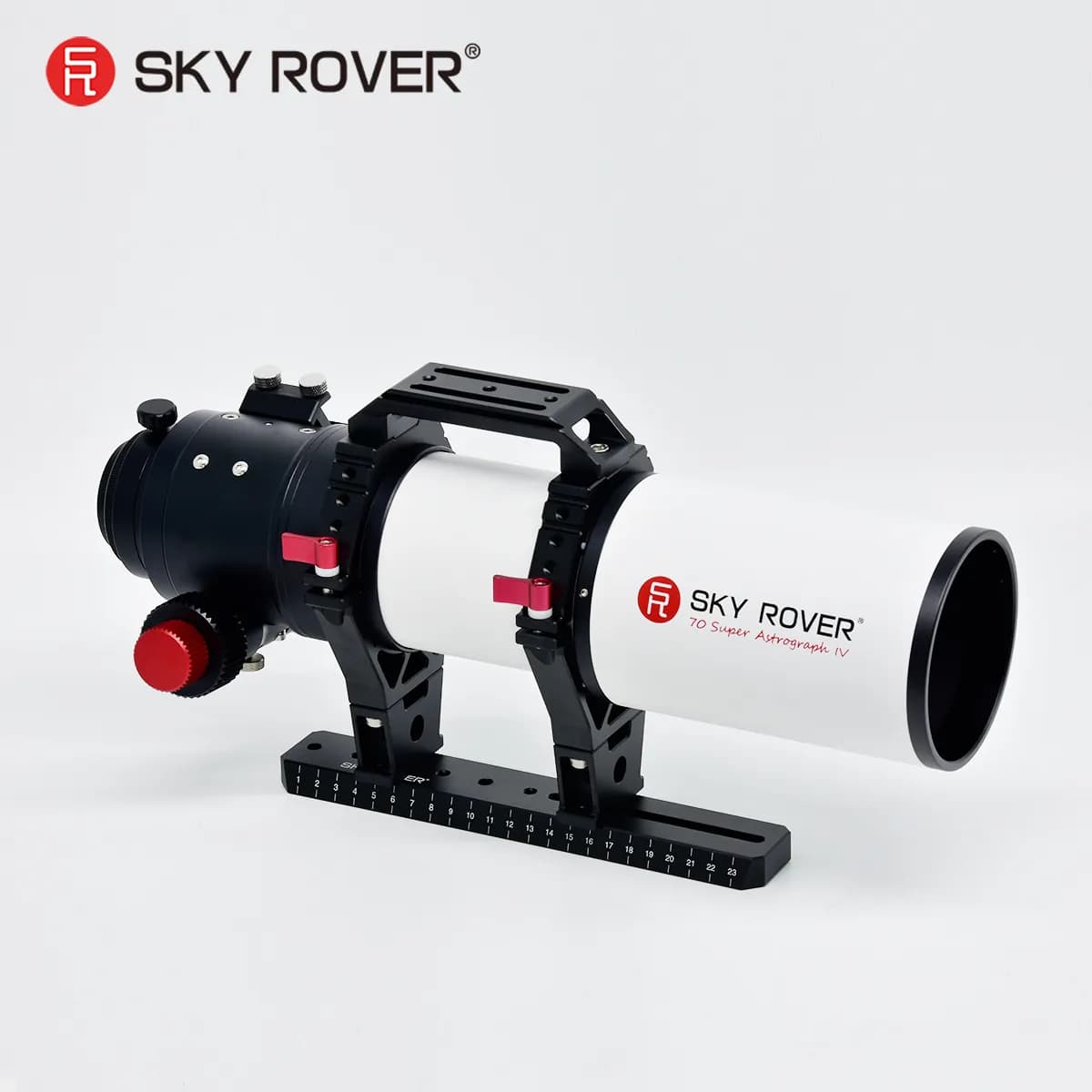

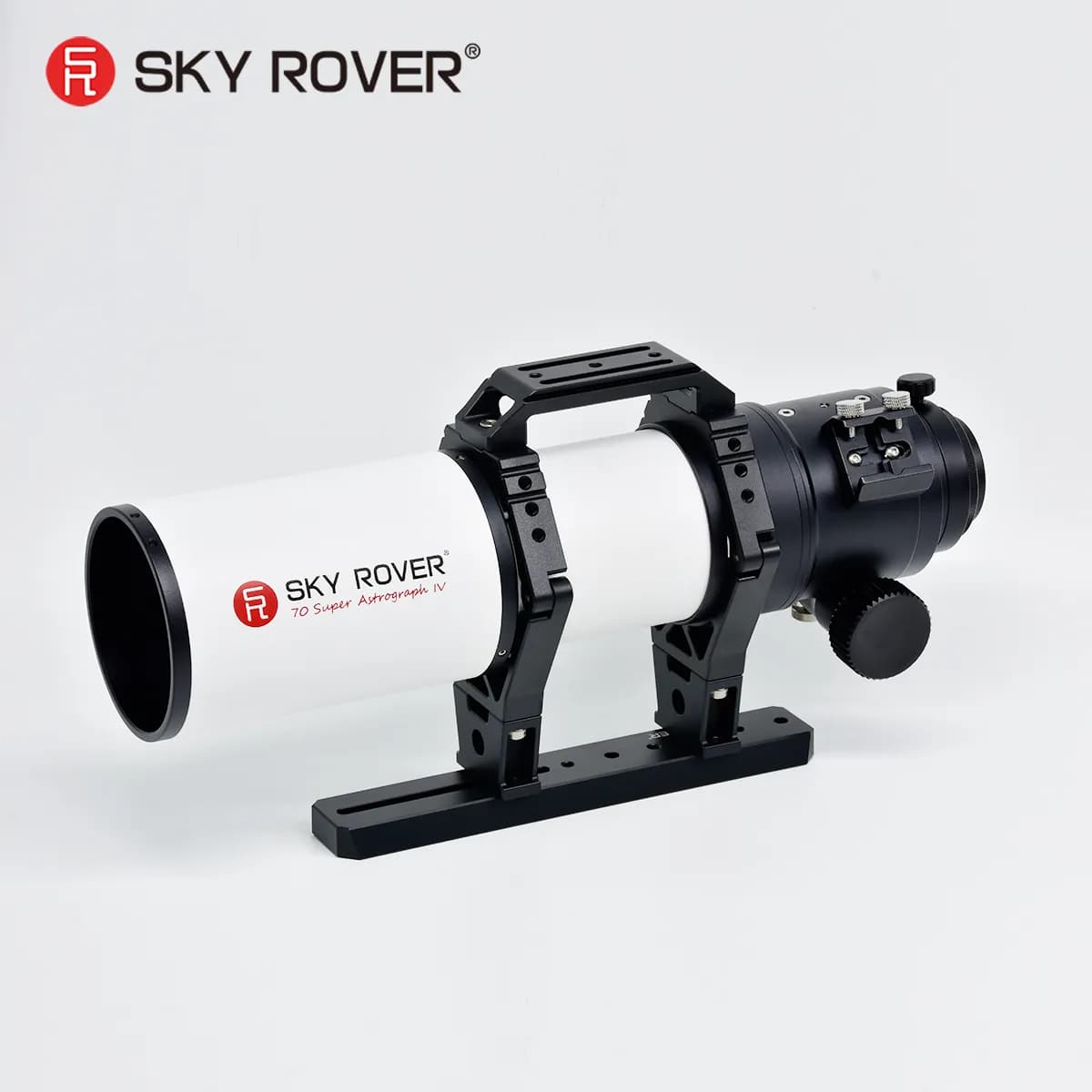

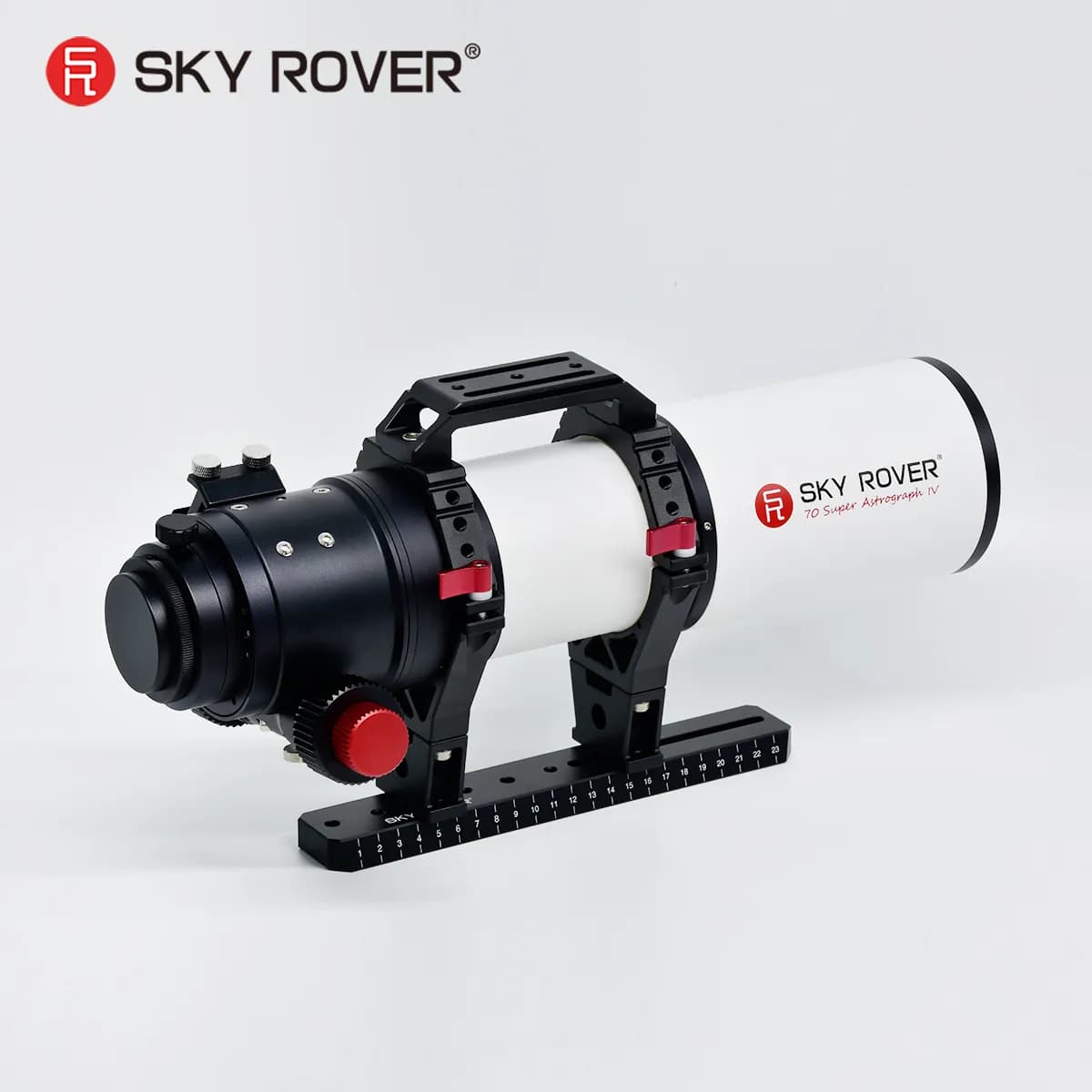

A compact Petzval built for wide-field astrophotography. The 70 SA v4 pairs a 70 mm aperture with a 350 mm focal length and a native 45 mm image circle to support full-frame sensors without adding a separate flattener or reducer. It is small, transportable, and configured for camera-first use.
70 mm f/5 Petzval astrograph
45 mm image circle
2.8-inch dual-speed R&P focuser
Compact wide-field imaging design
Integrated CAA
The four-element Petzval design integrates field correction into the optical train, delivering a native 45 mm image circle suitable for full-frame sensors at prime focus. Having correction built in keeps the system compact and avoids the need for a separate flattener in many imaging setups.

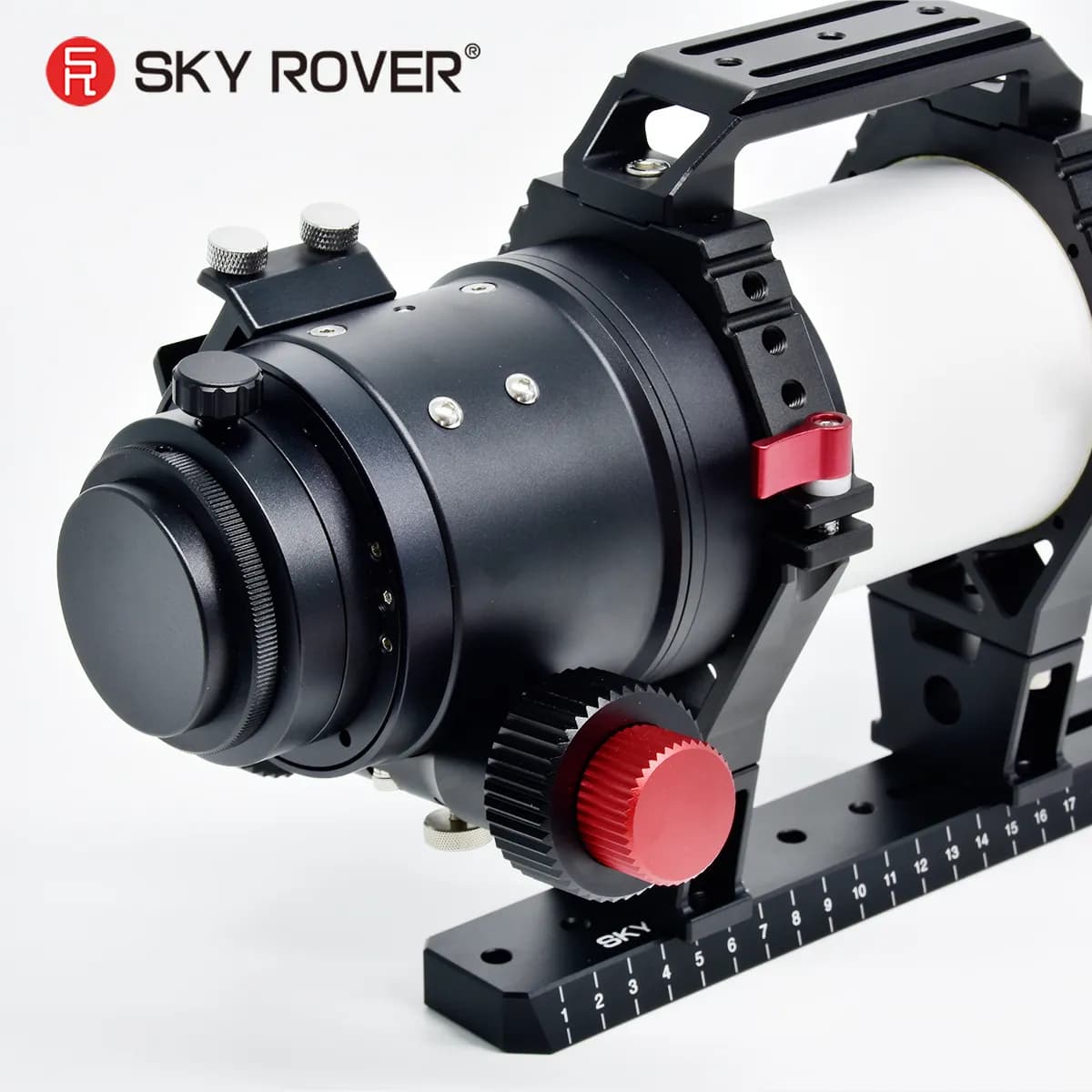

The OTA includes a 2.8-inch dual-speed rack-and-pinion focuser with about 29 mm of travel and an integrated CAA. The focuser is designed to accept most motor focusers. The dewshield front has reserved holes for an electric lens cover or flat-field panel, simplifying typical imaging accessories.

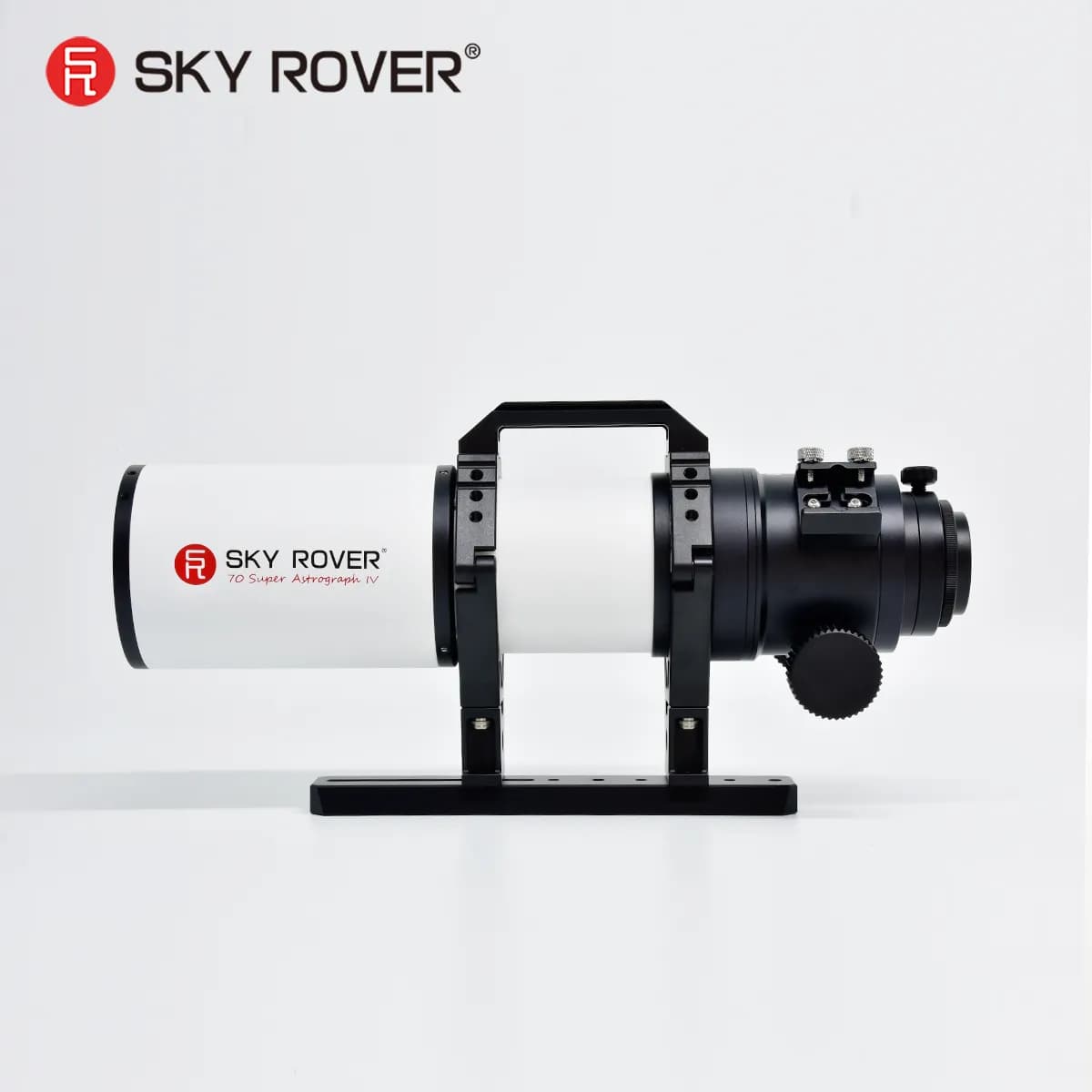

With a 350 mm retracted length and 434 mm extended, the tube is short and easy to transport. The OTA includes a Vixen-style dovetail and a handle, making mounting and carrying straightforward for field use while keeping total OTA weight near 4 kg.
The aperture is 70 mm and the focal length is 350 mm, giving an f/5 focal ratio.
The native image circle is 45 mm and the product is presented as meeting full-frame camera requirements at prime focus, so full-frame imaging at prime focus is supported without back-focus calculation according to the product notes.
It uses a 2.8-inch dual-speed rack-and-pinion focuser with integrated CAA and about 29 mm of travel. The focuser is stated to be compatible with most motor focusers.
The package includes the Sky Rover 70SA v4 OTA, a Vixen-style dovetail plate, and finder bases.
| Aperture | 70 mm |
| Focal Length | 350 mm |
| Focal Ratio | f/5 |
| Optical Design | 4 elements in 4 groups, Petzval structure |
| Glass | Includes Super ED glass and lanthanide material |
| Image Circle | 45 mm |
| Tube Length | 350 mm retracted, 434 mm extended |
| Weight | 4 kg |
| Focuser | 2.8-inch dual-speed rack-and-pinion focuser with CAA |
| Focuser Travel | About 29 mm |
| Rear Interfaces | M70 x 1, M48 x 0.75 female |
| Imaging Support | Full-frame imaging at prime focus with no back-focus calculation required |
| Optional Reducer | 0.8x reducer available |
