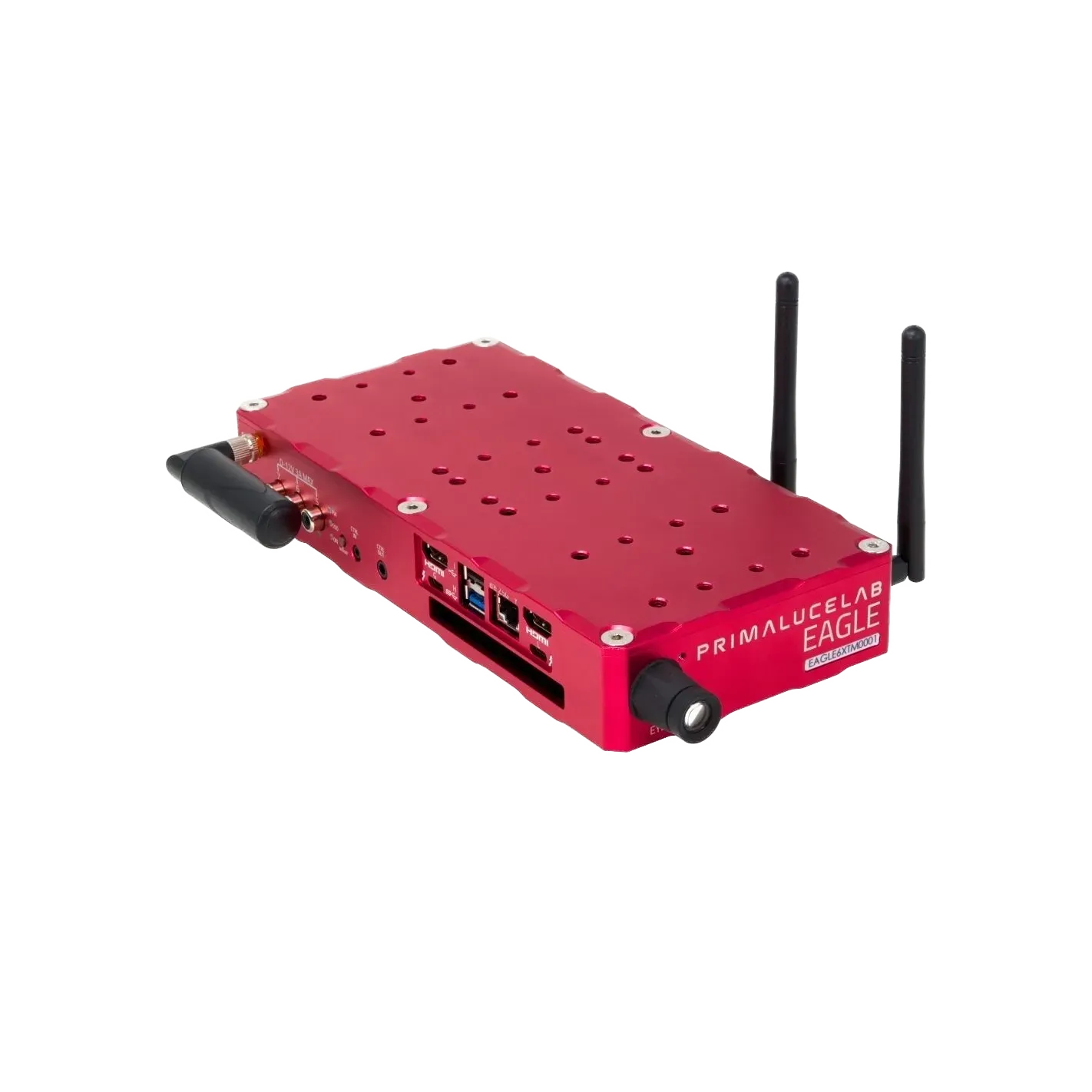

The EAGLE6 XTM is designed for demanding astrophotography and observatory automation, delivering exceptional computing power and advanced connectivity in a compact, telescope-mountable chassis.
Key Features
- Powered by a 13th Generation Intel Core i7 12-core processor (TDP 28W) for fast, reliable performance.
- 32GB DDR4 3200 MHz RAM and a 2TB NVMe SSD provide ample memory and high-speed storage for large imaging files and complex software.
- Runs Windows 11 Enterprise, allowing installation of your preferred astronomy and imaging software.
- Integrated 10-port USB hub: 3x USB 3.2, 2x Thunderbolt 4/USB 4 Type-C, and 5x USB 2.0 (4 with remote on/off control).
- Four 12V power out ports with remote on/off for powering mounts, cameras, and accessories, plus three variable 0–12V ports for dew heaters.
- Built-in GPS with high-gain antenna for precise location and time data.
- Includes EYE sensor for sky brightness, inclinometer for telescope elevation, and motion detector for equipment safety.
- Advanced connectivity with Thunderbolt 4 (up to 40 Gbps) and WiFi 6E for reduced interference and faster data transfer.
- Industrial-grade SSD and RAM for reliability in low temperatures.
- Aluminum chassis designed for easy mounting to telescopes using rings, bars, or clamps.
Advanced Observatory Control
- Dedicated CTRL IN/OUT ports for remote device switching and observatory automation.
- Lights-out Management (LOM) for remote power and sensor monitoring, even when the computer is off.
- Power consumption monitoring for each 12V output and input port.
Additional Features
- DARK mode disables LEDs for minimal light pollution.
- GHOST mode enables wireless connection to compatible devices, reducing cable clutter.
Physical Details
- Lightweight and compact: 1.2 kg aluminum enclosure for easy integration with telescope setups.
