Mars-662M

R5490,00

  • Sensor: Sony IMX662 mono
  • Format: 5.6 x 3.2 mm (1/2.8″)
  • Max Resolution: 1936×1100 (2.1 MP)
  • Pixel Size: 2.9 µm

In stock

SKU: MARS-662M Categories: , Tags: , , , Brand:
More specs and visuals available on manufacturer’s page above.

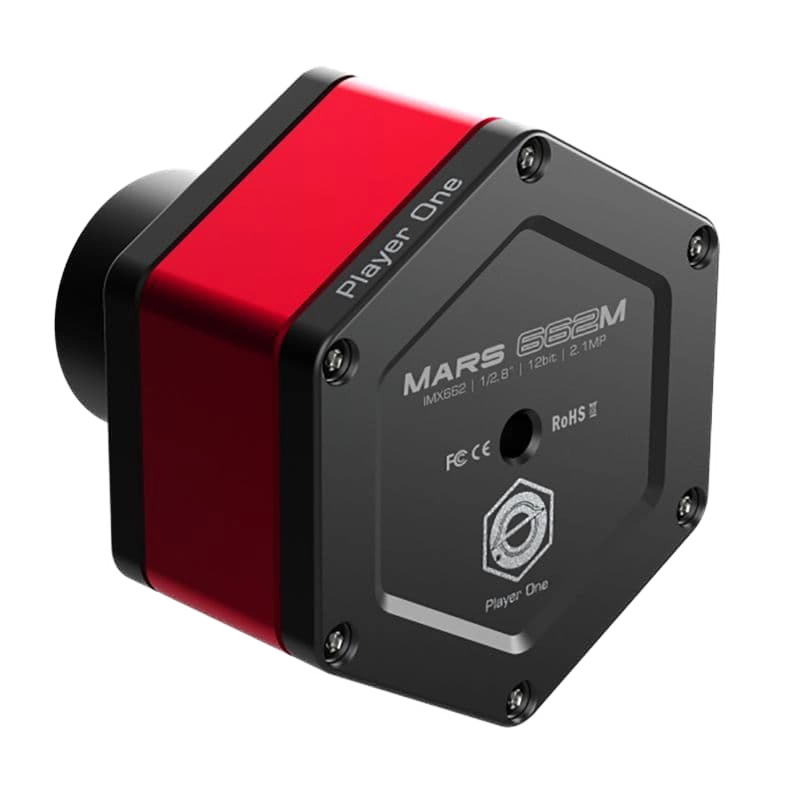

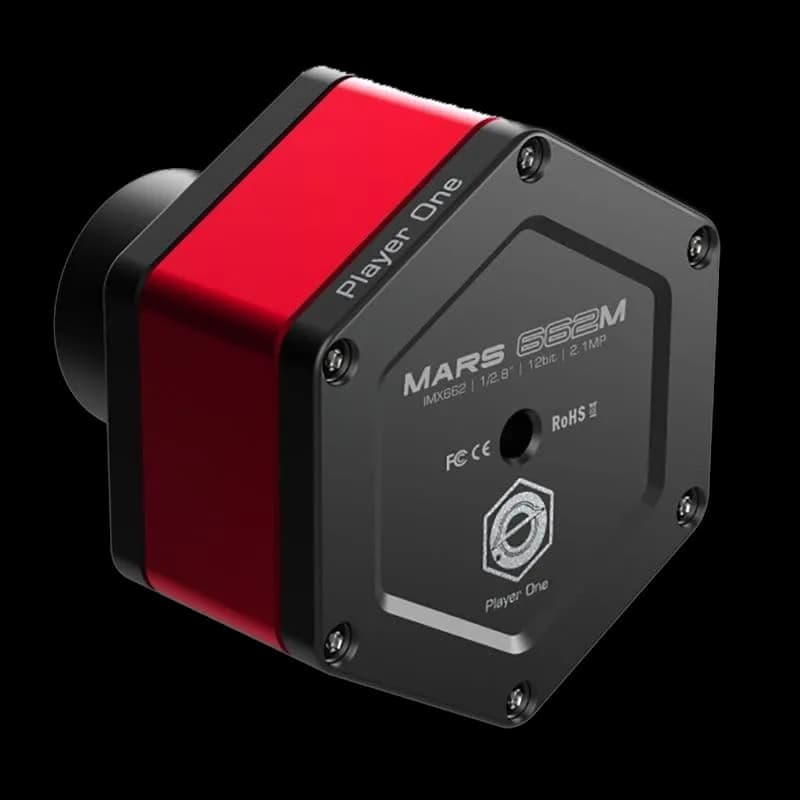

Player One Mars 662M

Key Features

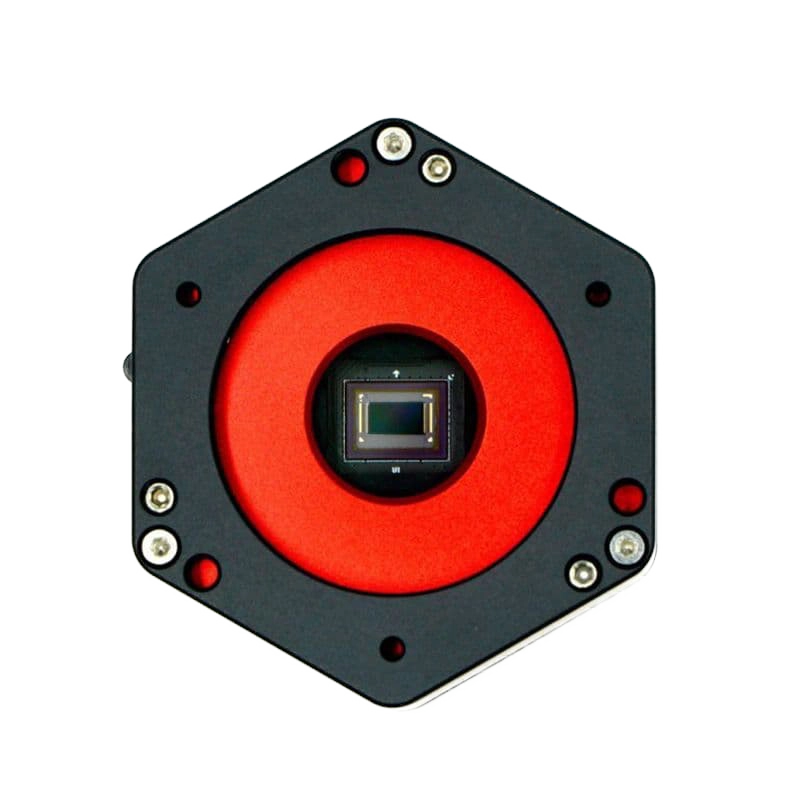

  • Sony IMX662 1/2.8″ CMOS Sensor (Mono):
    2.1 MP resolution (1936 x 1100), with small 2.9 µm pixels packed into a 5.6 x 3.2 mm chip.
  • High Frame Rate Planetary Capture:
    Up to 108 FPS at full resolution (10-bit RAW8), letting you freeze fast-moving detail.
  • Wide Dynamic Range:
    Full-well of ~54 k e⁻ and low read noise (~6.7 – 0.7 e⁻) deliver clean planetary stacks.
  • High Quantum Efficiency:
    With ~91% QE peak, this sensor excels in low-light and solar system detail capture.
  • Portable Build & Standard Format:
    Lightweight (~150 g) with standard 1.25″/M42 mount and AR-coated protective window.

Why Choose This Product?

  • Excellent Sensitivity for Its Class:
    Thanks to the high-QE (~91%) mono IMX662 sensor and low read noise down to 0.7 e⁻, this camera is well-suited for both lunar and planetary imaging-even in challenging light conditions.
  • Fast Full-Frame Capture:
    108 FPS at 1936x1100 lets you record sharp, turbulence-free moments during short planetary windows, essential for stacking high-quality frames.
  • High Dynamic Range:
    With a 54 ke⁻ full-well capacity, it captures bright features without clipping while preserving fine shadow detail.
  • Compact and Lightweight Design:
    Its 66 mm diameter housing and sub-150 g weight make it perfect for travel rigs and quick setup.
  • Exceptional Value for Monochrome Imaging:
    Offers premium mono sensor performance at a budget-friendly price - an ideal entry point for serious planetary imaging.

Specifications

SensorSony IMX662 1/2.8″ CMOS (mono)
Diagonal6.44 mm
Total Pixels2.1 Mega Pixels
Max Resolution1936x1100
Pixel Size2.9 µm
Chip Size5.6 mm x 3.2 mm
ShutterRolling shutter
Frame Rate108 FPS (10-bit)
Exposure Range32 µs-2000 s
Readout Noise6.7 - 0.7 e⁻
QE Peak≈91%
Full Well54 k e⁻
ADC12 bit
Data PortUSB 3.0 / USB 2.0
Adapter1.25″ / M42x0.75
Back Focal Length12.5 mm
Protective WindowD21 x 1.1 mm AR Plus Multi-Layer Coating
Diameter66 mm
Weight150 g

What's in the box

  • Mars 662M camera
  • 1.25″ / M42x0.75 adapter
  • USB 3.0 data cable
  • ST-4 guiding cable
  • Air blower
  • M2 hex wrench
