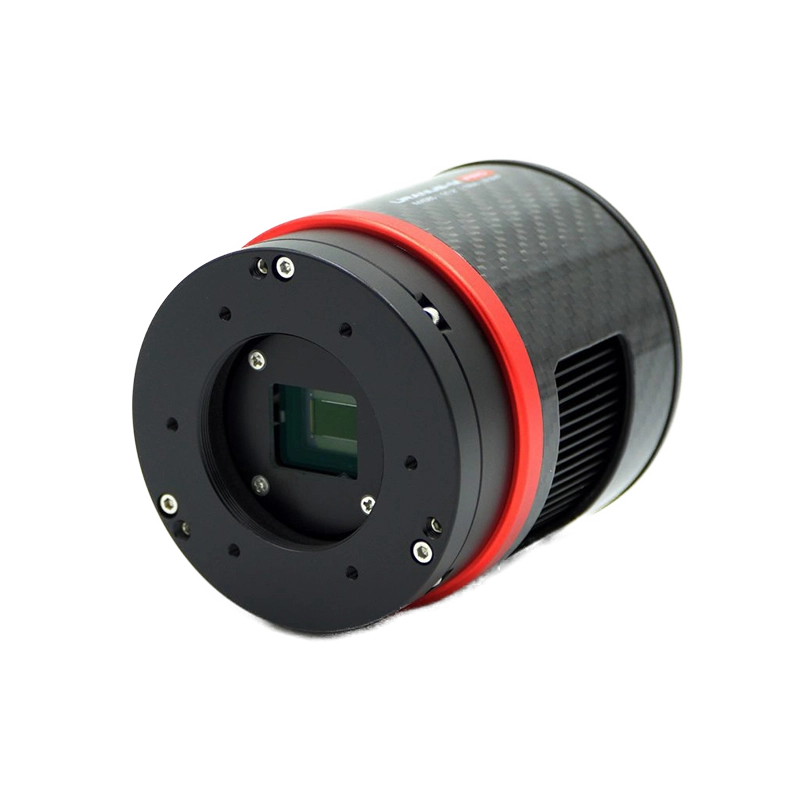

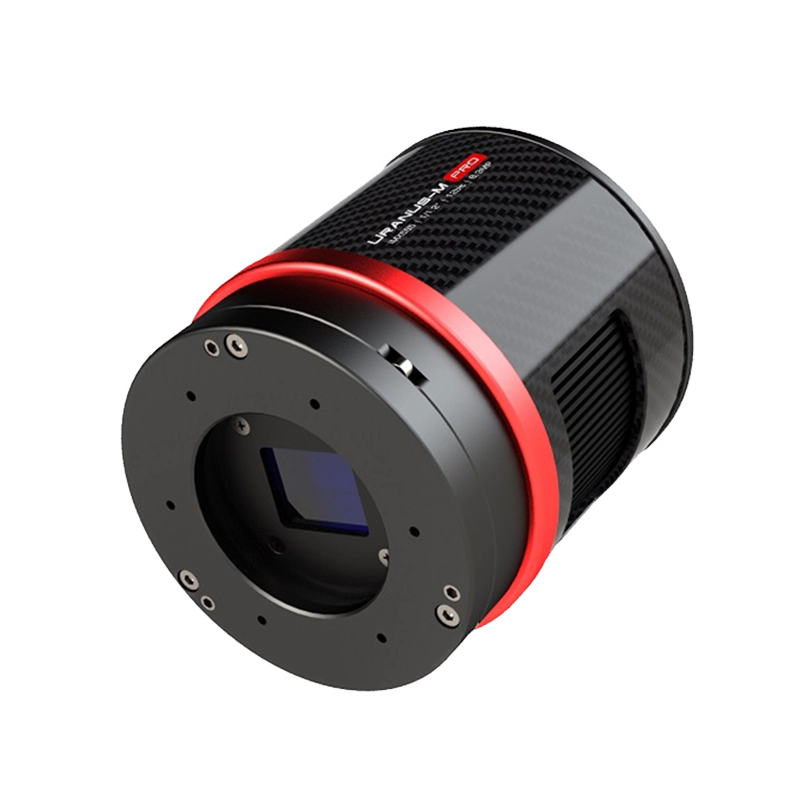

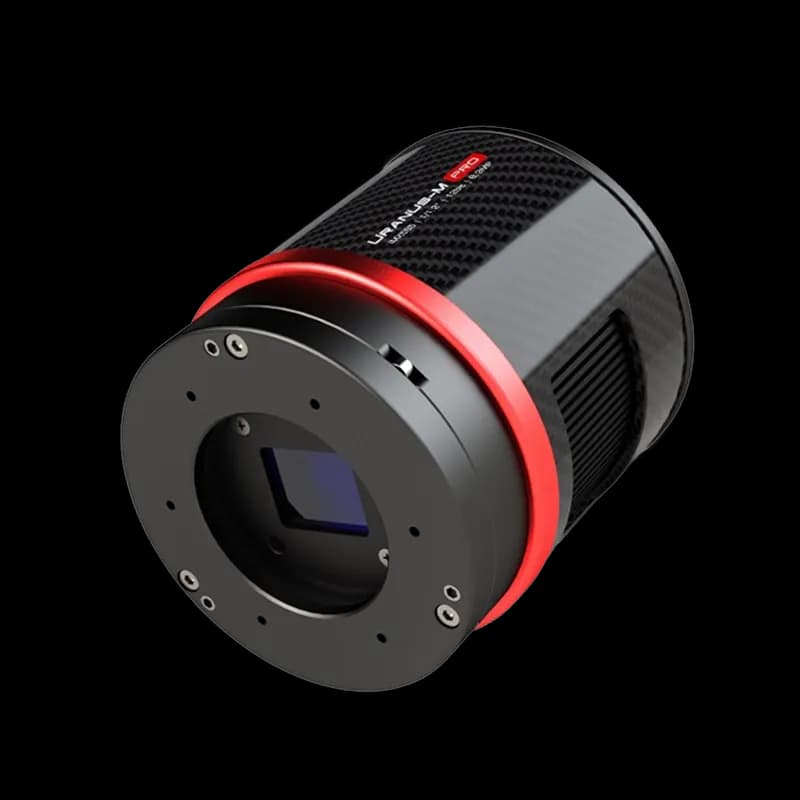

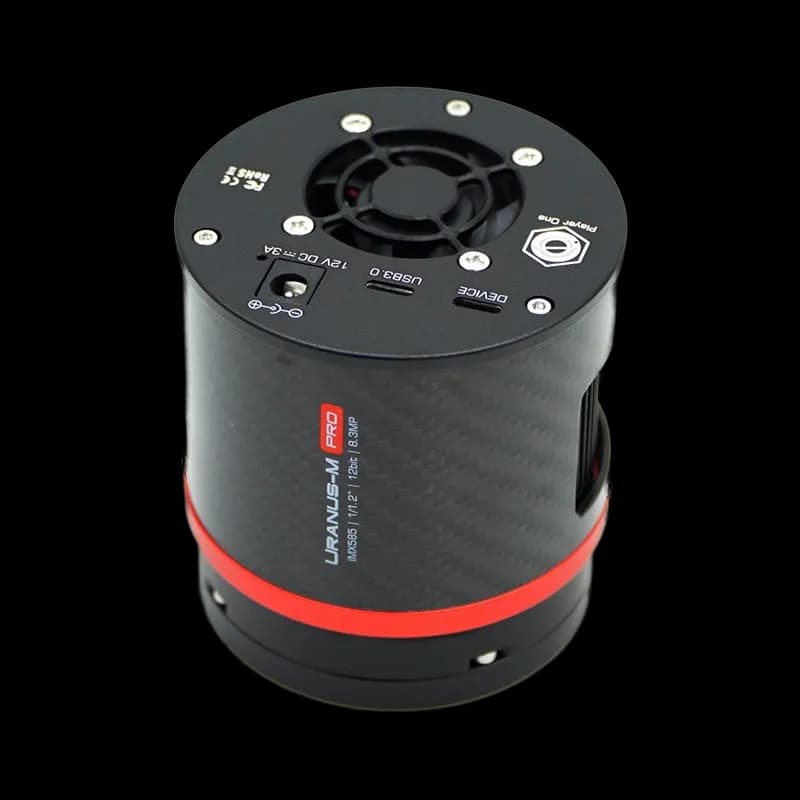

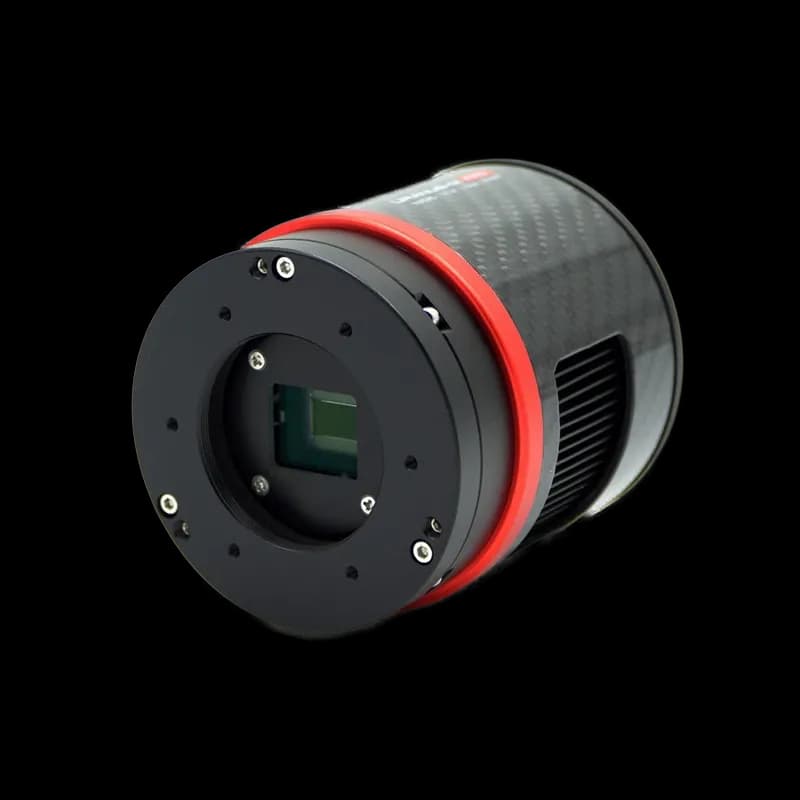

Explore Uranus-M Pro
The Uranus-M Pro is a compact cooled monochrome camera built for deep-sky precision. Its 1/1.2" IMX585 sensor with 2.9 µm pixels combines high quantum efficiency and an 8.3 MP resolution for detailed captures, while the dual-stage cooling lowers thermal noise for long exposures and cleaner data.
Sensor: IMX585 mono
Format: 11.2 x 6.3 mm (1/1.2″)
Max Resolution: 3856 x 2180 (8.3 MP)
Pixel Size: 2.9 µm
At 3856 × 2180 (8.3 MP) the Sony IMX585 mono sensor delivers fine detail from a 1/1.2" format. The 2.9 µm pixels are a trade-off between sensitivity and resolving power, suitable for small-sensor imaging on a wide range of telescopes and focal lengths.
A two-stage TEC cooler can pull the sensor about 35 to 40 °C below ambient, reducing dark current for long exposures. This lower thermal background helps preserve faint details in deep-sky targets and improves signal-to-noise in stacked integrations.
The camera streams up to about 46–47 FPS in RAW8 over USB 3.0 for faster framing or focusing workflows, and its full well capacity around 47 ke- gives a generous dynamic range for bright cores and faint nebulosity in the same frame.
Designed for serious astrophotographers, the Player One Uranus-M PRO (IMX585) is a cooled USB3.0 mono camera built for deep-sky imaging precision.
It features 12 bit analog-to-digital converter for excellent dynamic range, 2.9 μm pixels for optimal balance of sensitivity and detail
Its carbon-fiber body, dual TEC cooling, and tilt plate integration offer uncompromising image quality across DSO, solar, and lunar targets.

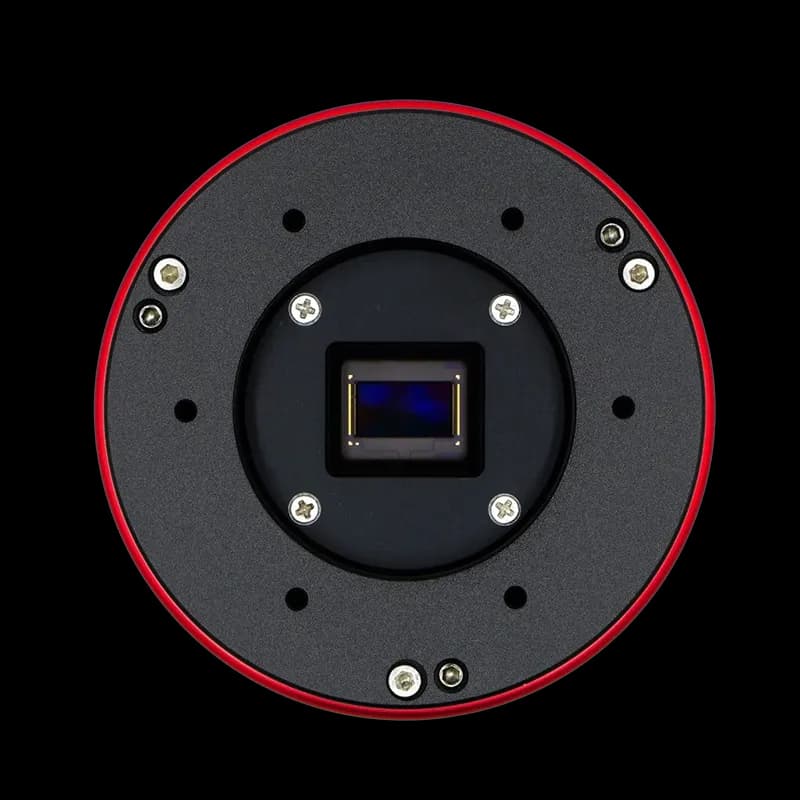

Sony IMX585 1/1.2″ CMOS Sensor (Mono):
8.3 MP resolution (3856 x 2180), 2.9 µm pixel size, 12.85 mm diagonal.
Dual Tilt Plate Design:
Front 3-point tilt plate is standard; optional rear 4-point tilt plate included for precise FOV correction when using filter wheels or OAGs.
Carbon Fiber Construction:
Compact, lightweight (~420 g) design with integrated anti-dew heater and shading pad.
Deep Cooling System:
Dual-stage TEC cooling achieves ΔT of ~35-40 °C below ambient for ultra-low thermal noise.
512 MB DDR3 Buffer:
Smooth image streaming and minimal frame drops-even via USB 2.0.
High Speed & Sensitivity:
Up to 47 FPS in RAW8 via USB 3.0; full well capacity of ~47 ke⁻ with QE peak around ~91%.
Non-Amp-Glow & High QE:
STARVIS 2 architecture yields clean, high-SNR frames across long exposures.
| ADC | 12 bit |
| Adapter | 1.25″ / M42X0.75 |
| Back Focal Length | 17.5 mm |
| Chip Size | 11.2 mm x 6.3 mm |
| Cooler Power Consumption | 12 V - 3 A Max |
| Cooling System | High quality 2 -stage TEC cooling Component |
| Data Port | USB 3.0 / USB 2.0 (Type-C) |
| Delta T | 35 °C-40 °C (below ambient) |
| Diagonal | 12.85 mm |
| Diameter | 78 mm |
| Exposure Range | 32 µs-2000 s |
| Frame Rate | 47 FPS (10-bit RAW8) |
| Full Well | 47 k e⁻ |
| Max Resolution | 3856x2180 |
| Pixel Size | 2.9 µm |
| Protective Window | D32 x 2 mm High Quality AR Plus Multi-Layer Coating |
| QE Peak | ≈91% |
| Readout Noise | 6.5 - 0.7 e⁻ |
| Resolution and FPS | Performance via USB 3.0 Connection Resolution Raw8 Raw16 3856x2180 46 FPS 23 FPS |
| Sensor | Sony IMX585 1/1.2″ CMOS (mono) |
| Shutter | Rolling shutter |
| Total Pixels | 8.3 Mega Pixels |
| Weight | 420 g |
| Working Temperature & Humidity | -10 °C-60 °C / 0%-80% |
