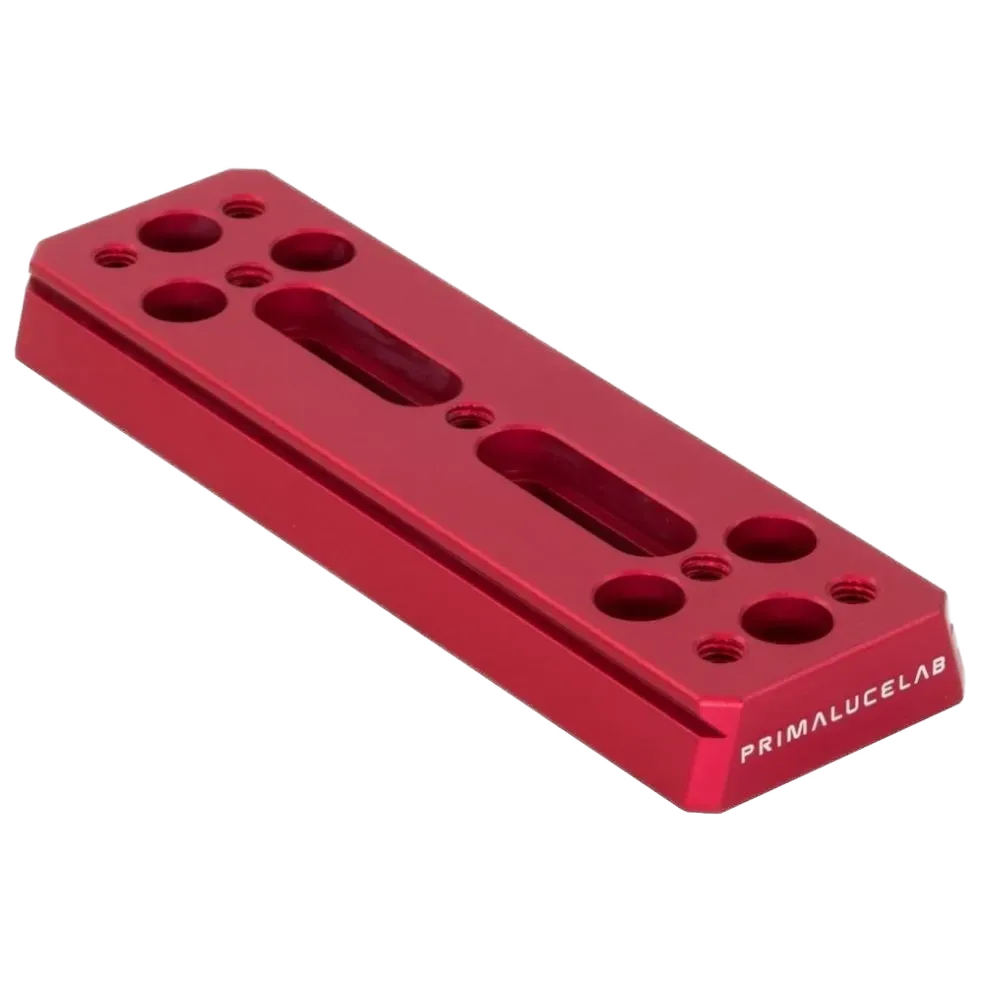

Vixen style dovetail plate 140mm PLUS

The Vixen style dovetail plate 140mm PLUS is a machined aluminium dovetail bar designed for modular support with the PrimaLuce PLUS system. It provides a Vixen-format mounting surface and multiple attachment points so you can configure support rings, guide rings or clamps with a high degree of mechanical rigidity.

Key uses

• Mount a telescope to a Vixen-type dovetail clamp.
• Attach a camera or telescope to photographic heads using the plate's slots and holes.
• Increase structural stiffness when fitted above support rings, and add accessories such as guide rings.
• Form a side-by-side mounting arrangement when combined with two dovetail clamps (PLUS).

Materials and construction

The plate is CNC-machined from aluminium, sandblasted for a smooth finish and hard-anodised to improve surface hardness and corrosion resistance. The design includes threaded holes, plain holes and slots to accept a range of PLUS-system components and many third-party accessories.

Compatibility note

The plate follows the Vixen dovetail form factor and is intended to work within the PrimaLuce PLUS ecosystem. If you plan to use non-PLUS accessories, verify mechanical compatibility with the plate's central slots and hole spacing before purchase.

Warning: The source does not provide detailed dimensional drawings, hole spacings, or a full compatibility list. Do not assume specific measurements or included fasteners unless stated elsewhere.
