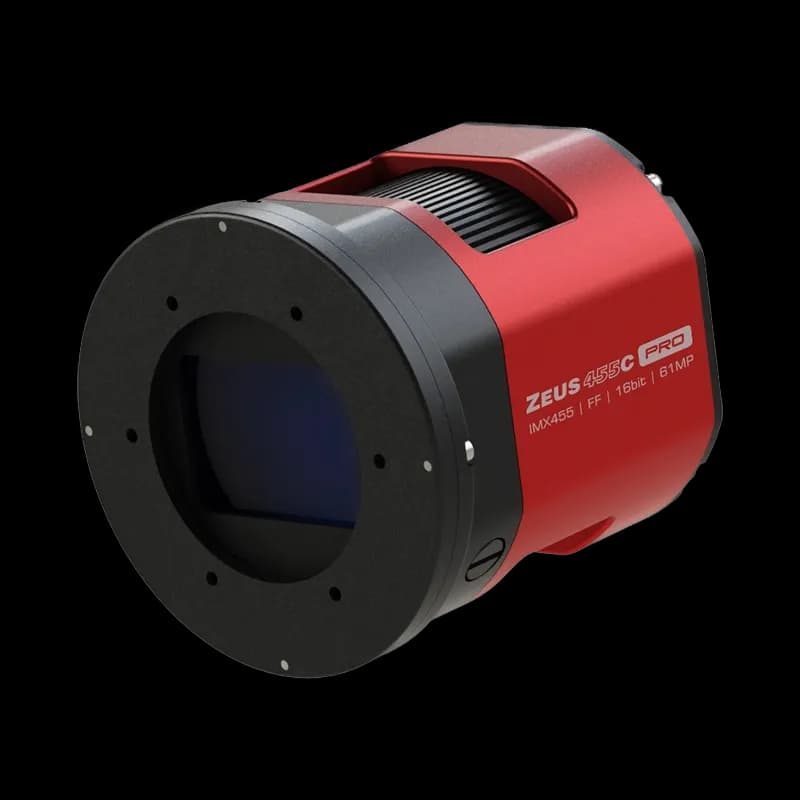

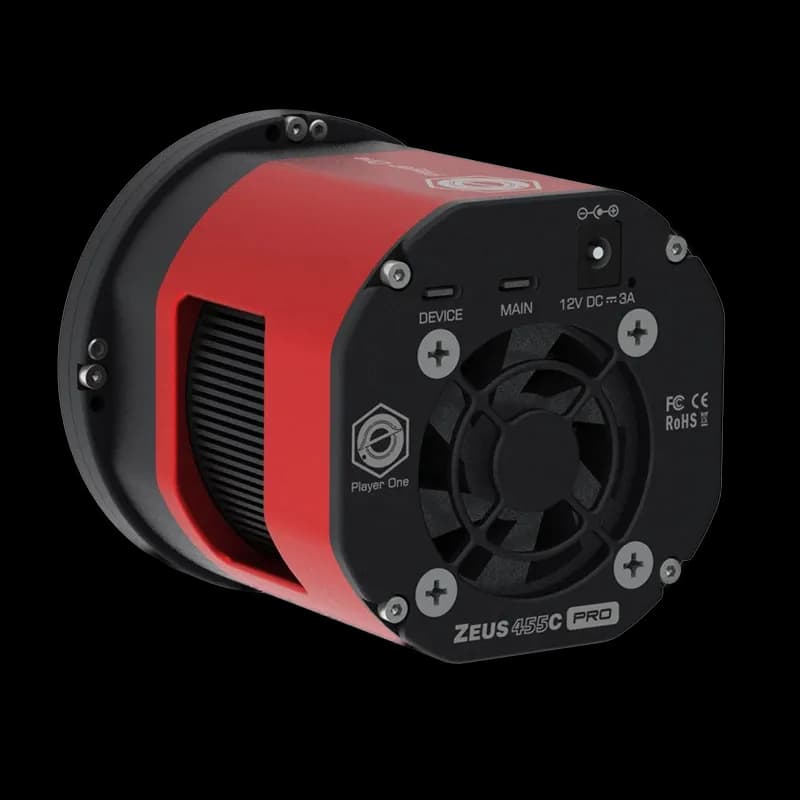

Explore ZEUS 455C Pro

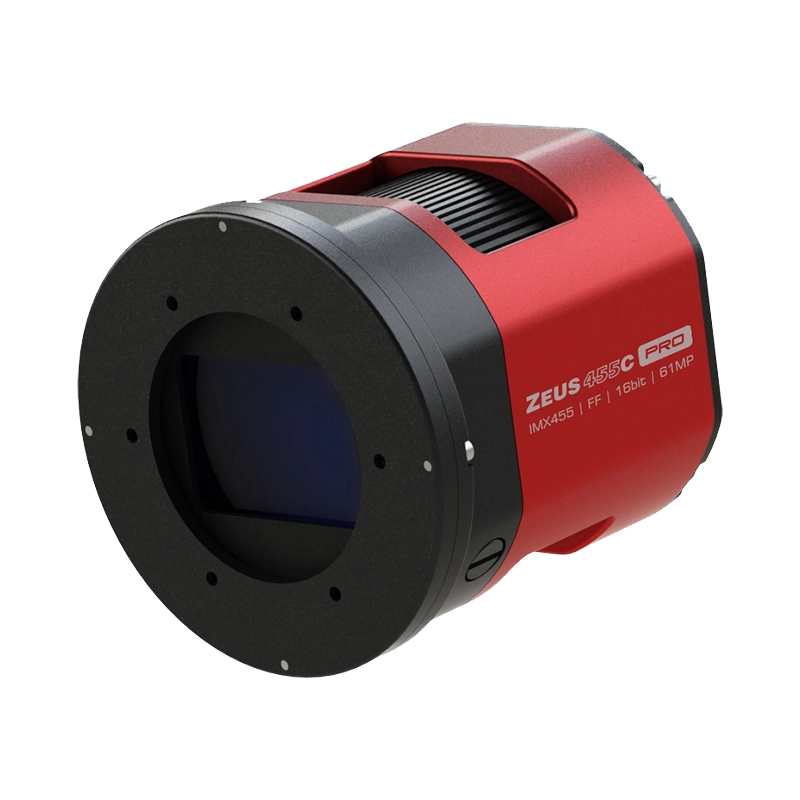

The ZEUS 455 series puts a very large, 61 MP Sony IMX455 sensor into a cooled astronomy camera body for wide-field deep-sky imaging. It pairs full-frame format resolution and 3.76 μm pixels with dual-stage cooling and a substantial DDR3 buffer to stabilise long exposures and high-data transfers.
Sensor: IMX455 color
Format: 36 x 24 mm (Full-Frame)
Max Resolution: 9576 x 6388 (61 MP)
Pixel Size: 3.76 µm

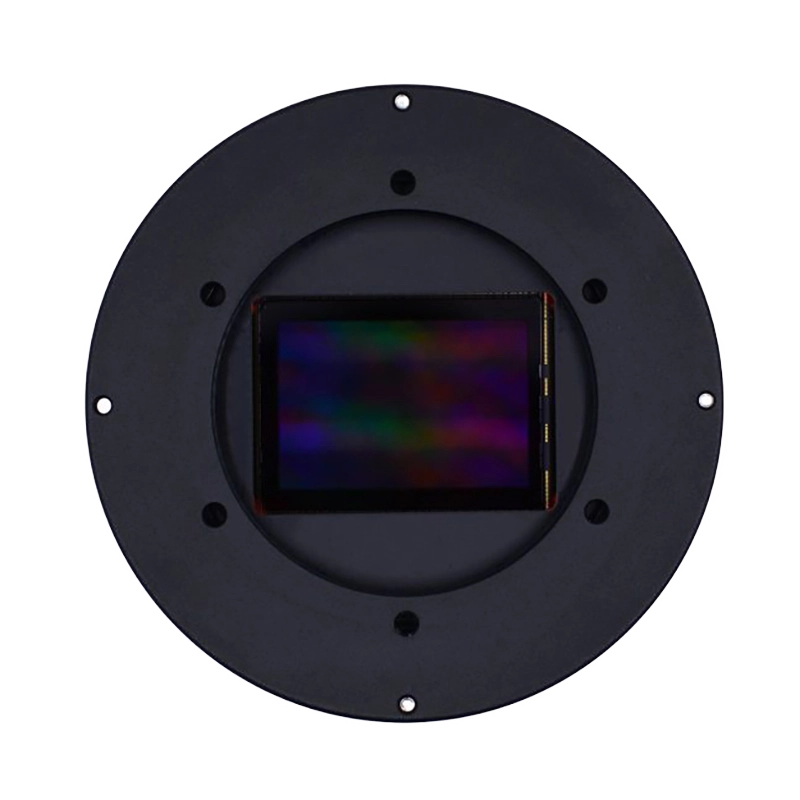

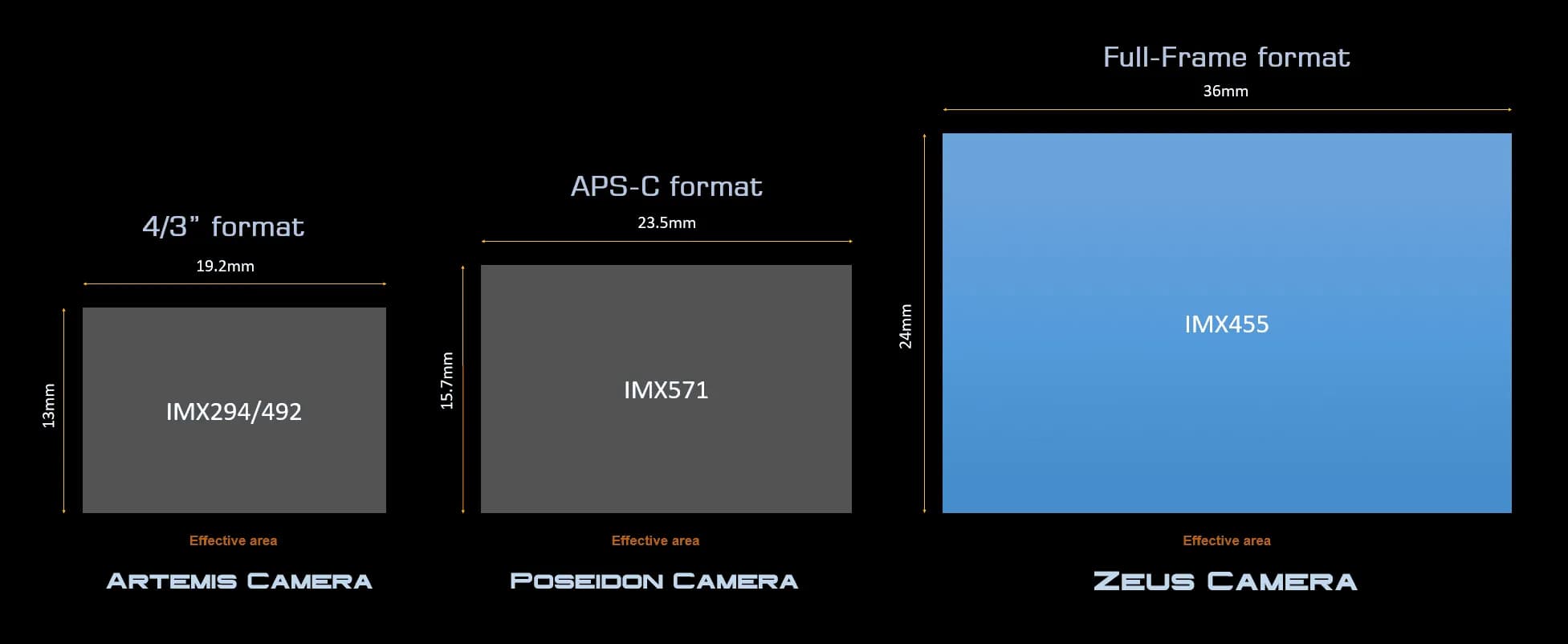

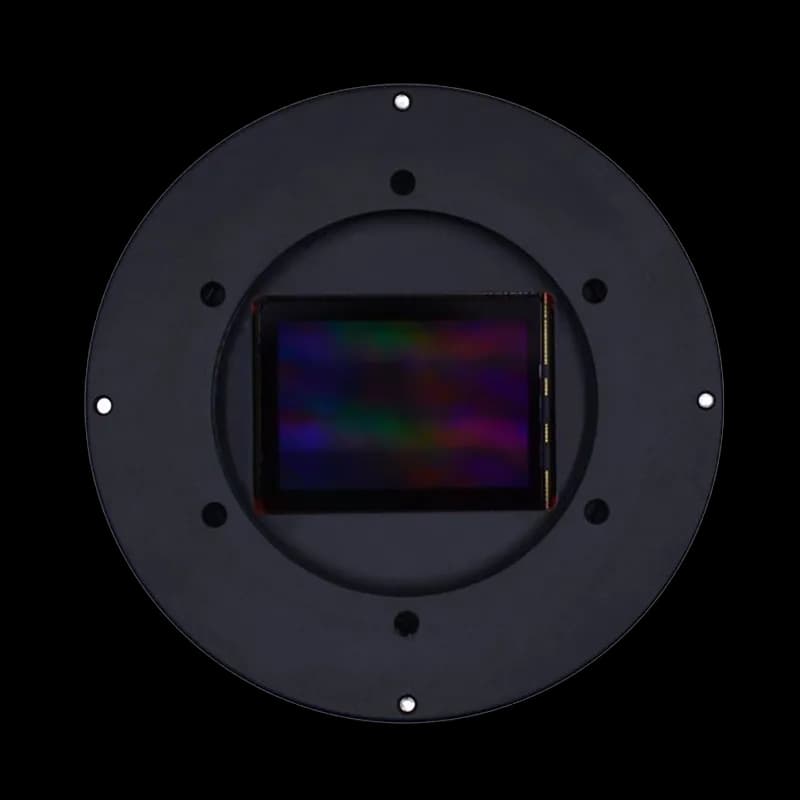

This camera uses a Sony IMX455 sensor with 9576 x 6388 pixels and 3.76 μm pixel size, yielding about 61 megapixels on a 36 × 24 mm imaging area. That combination gives very high resolution and a large diagonal that benefits wide-field refractors and larger-format imaging trains.

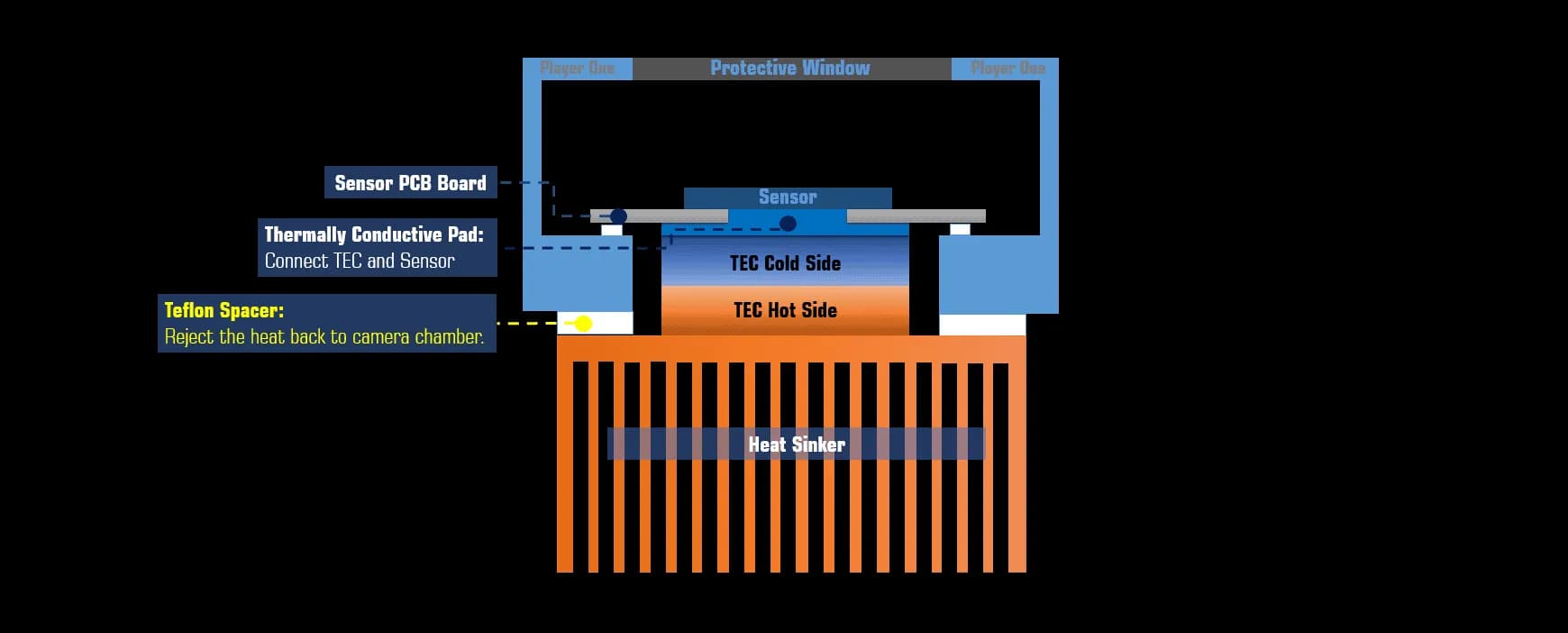

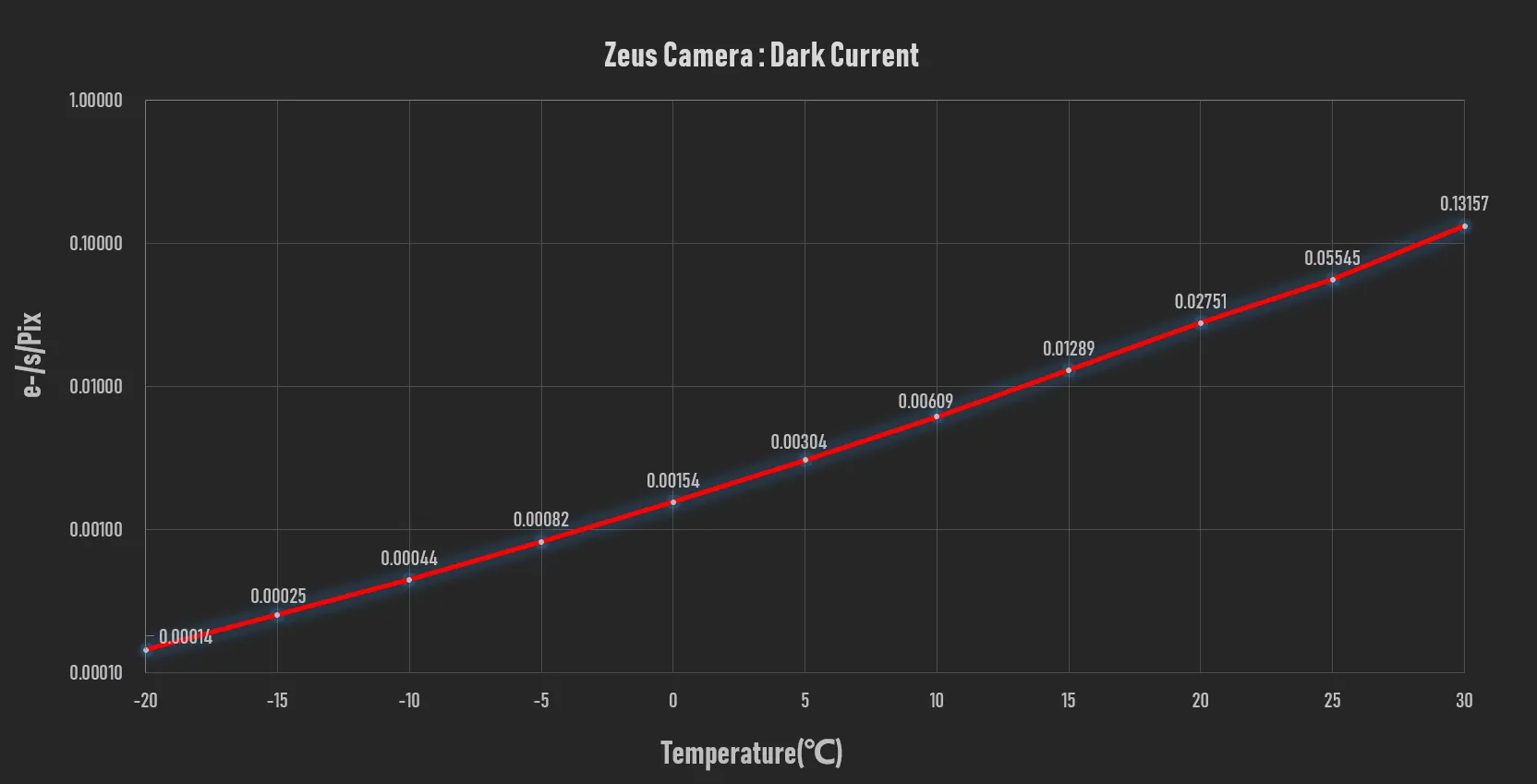

A two-stage TEC cooling system can reach roughly 35 °C below ambient, reducing thermal noise on long exposures. The camera specifies a maximum cooler draw and a dedicated cooler power rating to support stable temperature control during extended imaging runs.

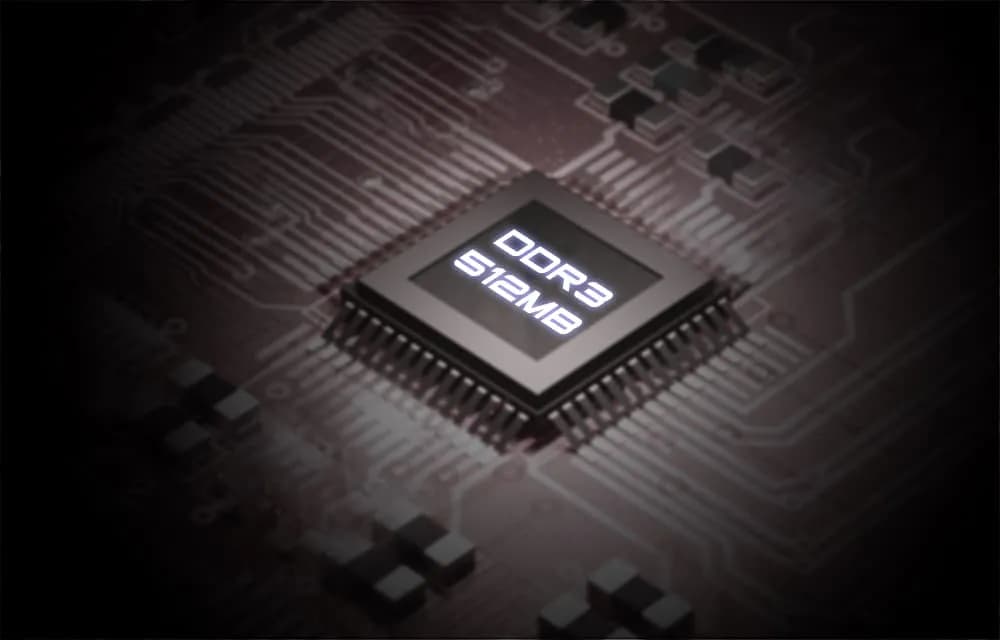

A 512 MB DDR3 buffer is included to stabilise data streams, helping prevent frame drops and lowering readout noise even on slower hosts. The camera offers Type-C USB 3.0 connectivity with backward compatibility to USB 2.0 for flexible system setups.

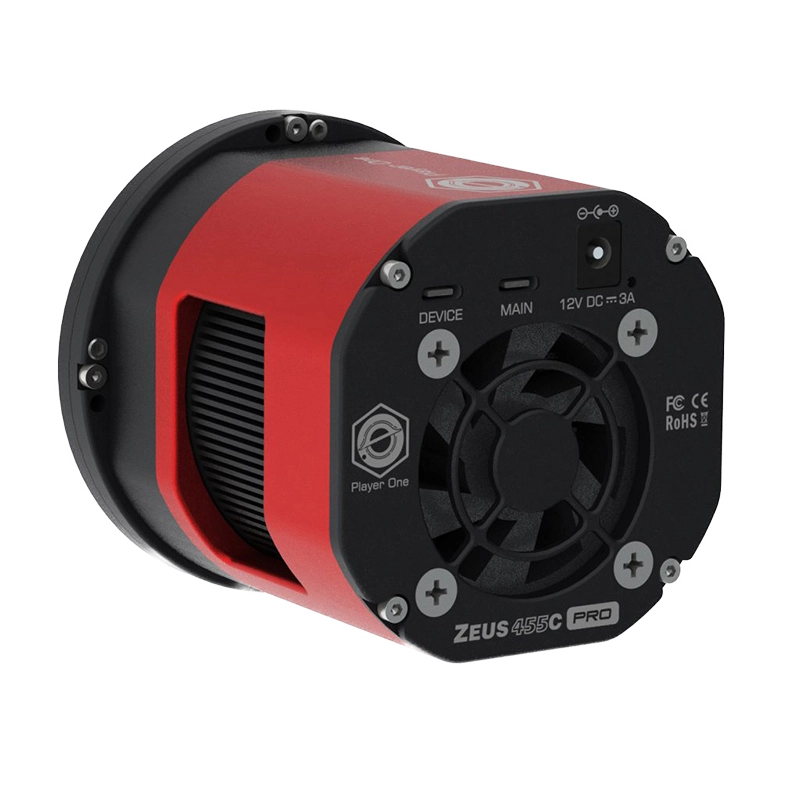

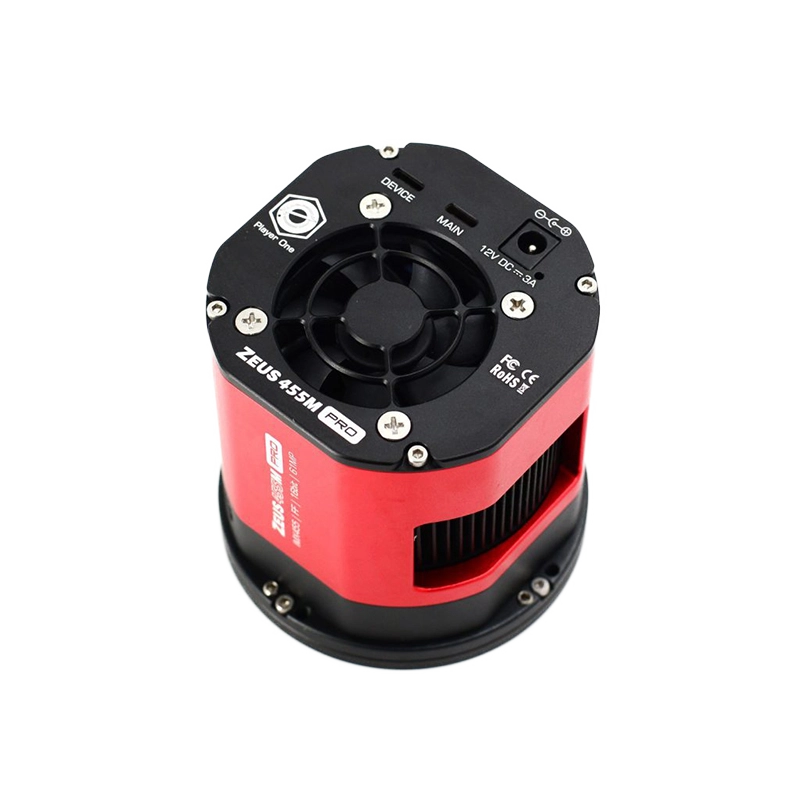

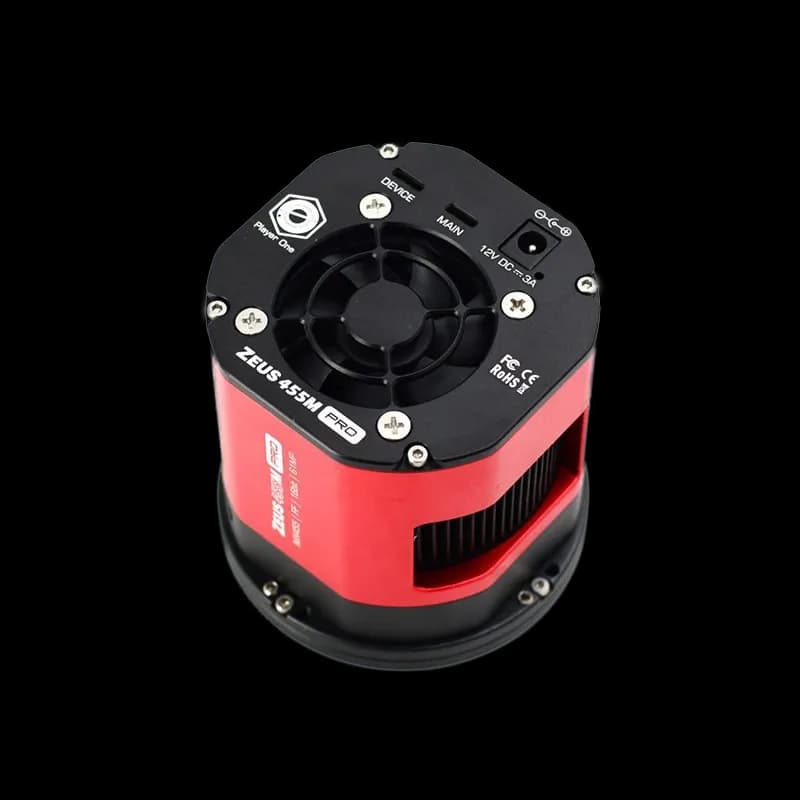

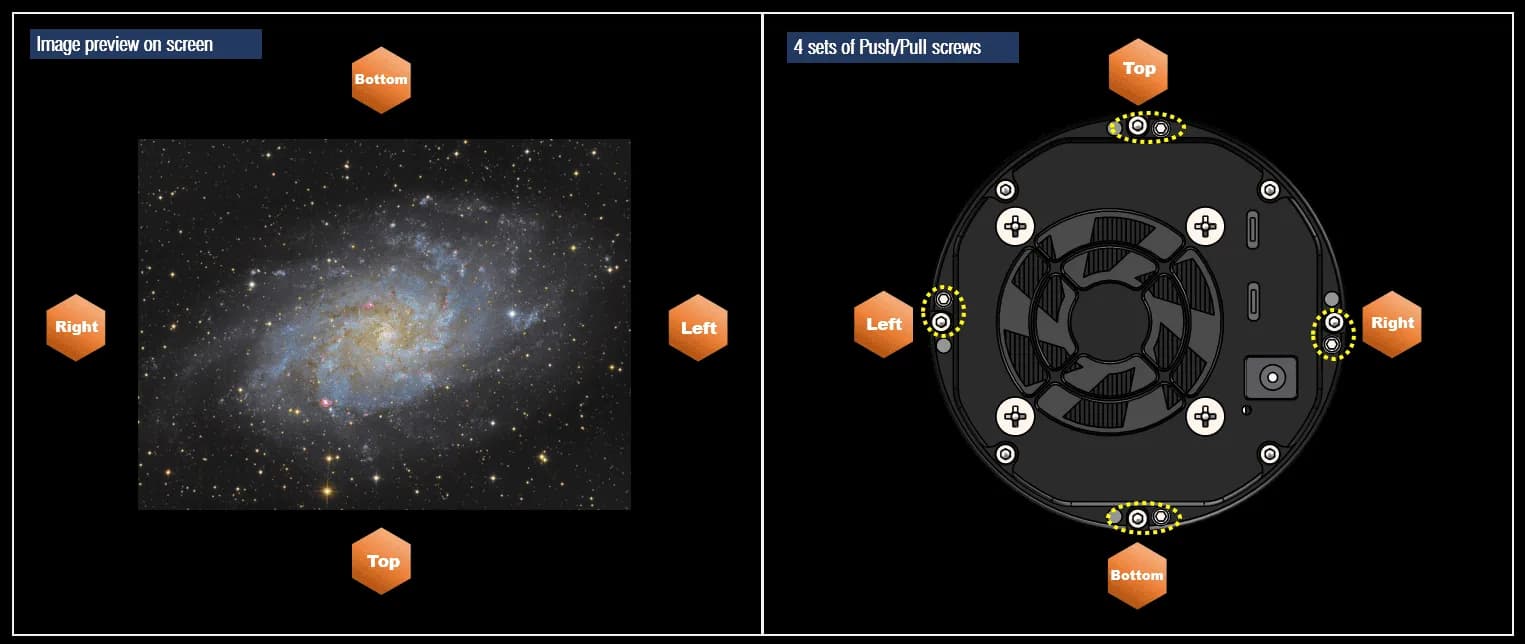

A four-point adjustable rear sensor tilt plate lets you correct field curvature and corner tilt precisely, with a high-density sponge pad to prevent side-light leakage. The octagonal, anodised body is described as mechanically robust and thermally considerate for cooled operation.

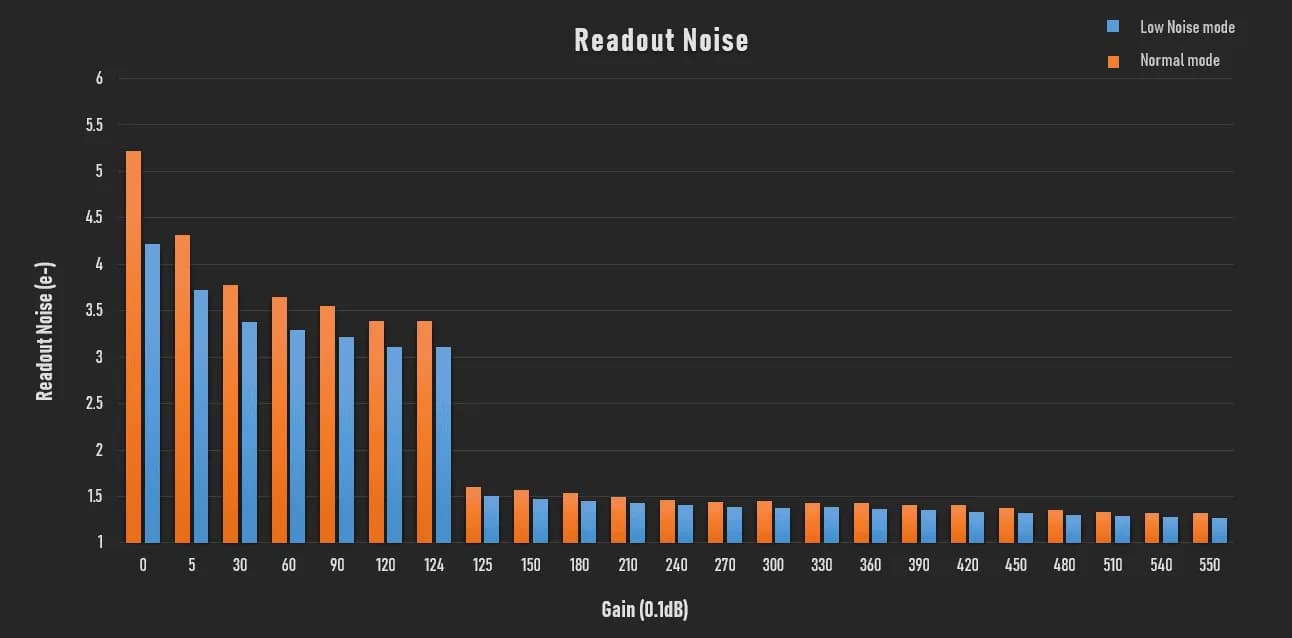

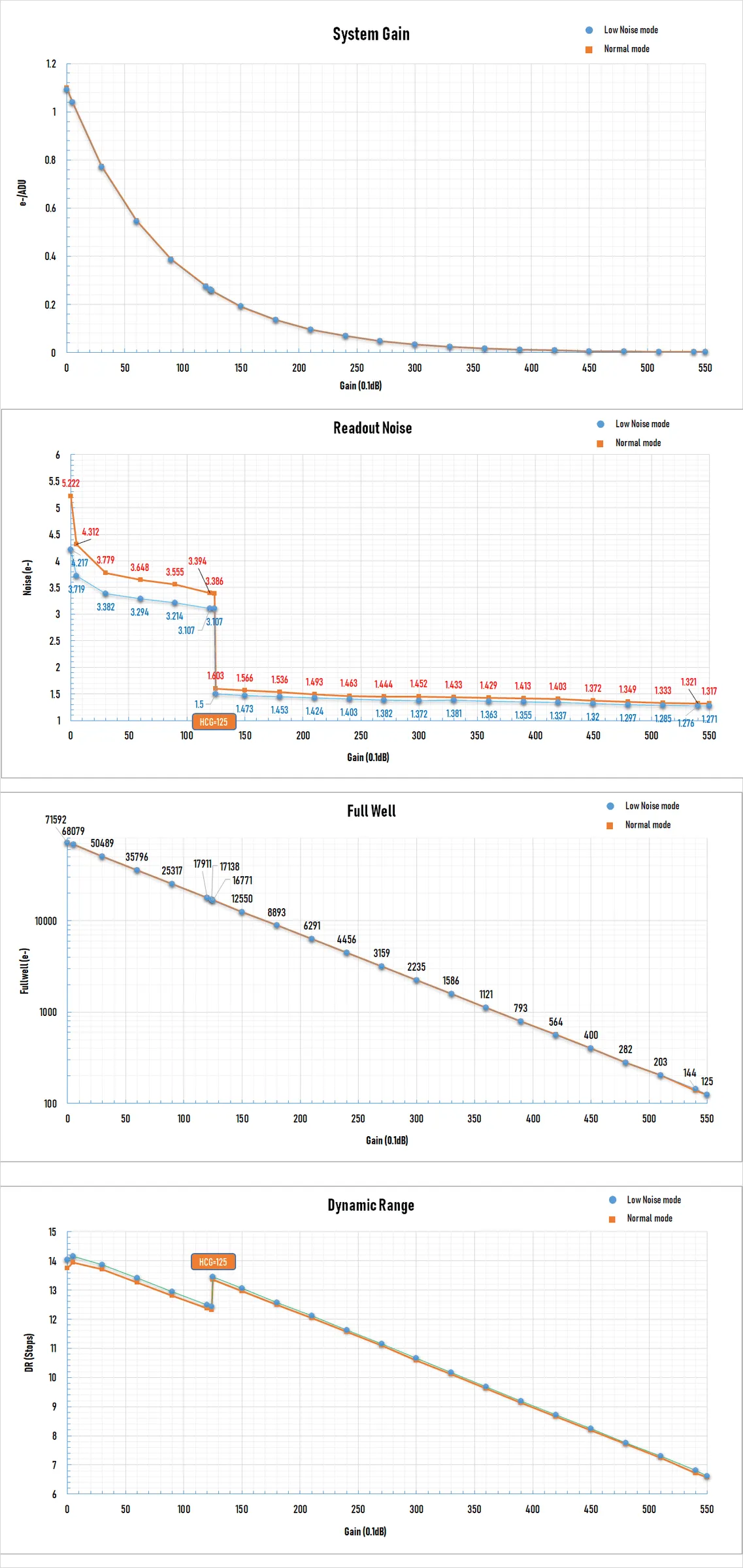

The camera uses a native 16-bit ADC for up to 65,536 tonal levels, supporting finer tonal transitions and colour depth. Dual sampling modes include a normal mode for higher frame rates and a low-noise HCG mode that reduces read noise (specifying a range down toward about 1.27–1.5 electrons at the low end).
| ADC | 16 bit |
| Adapter | M54x0.75, 2", 1.25" |

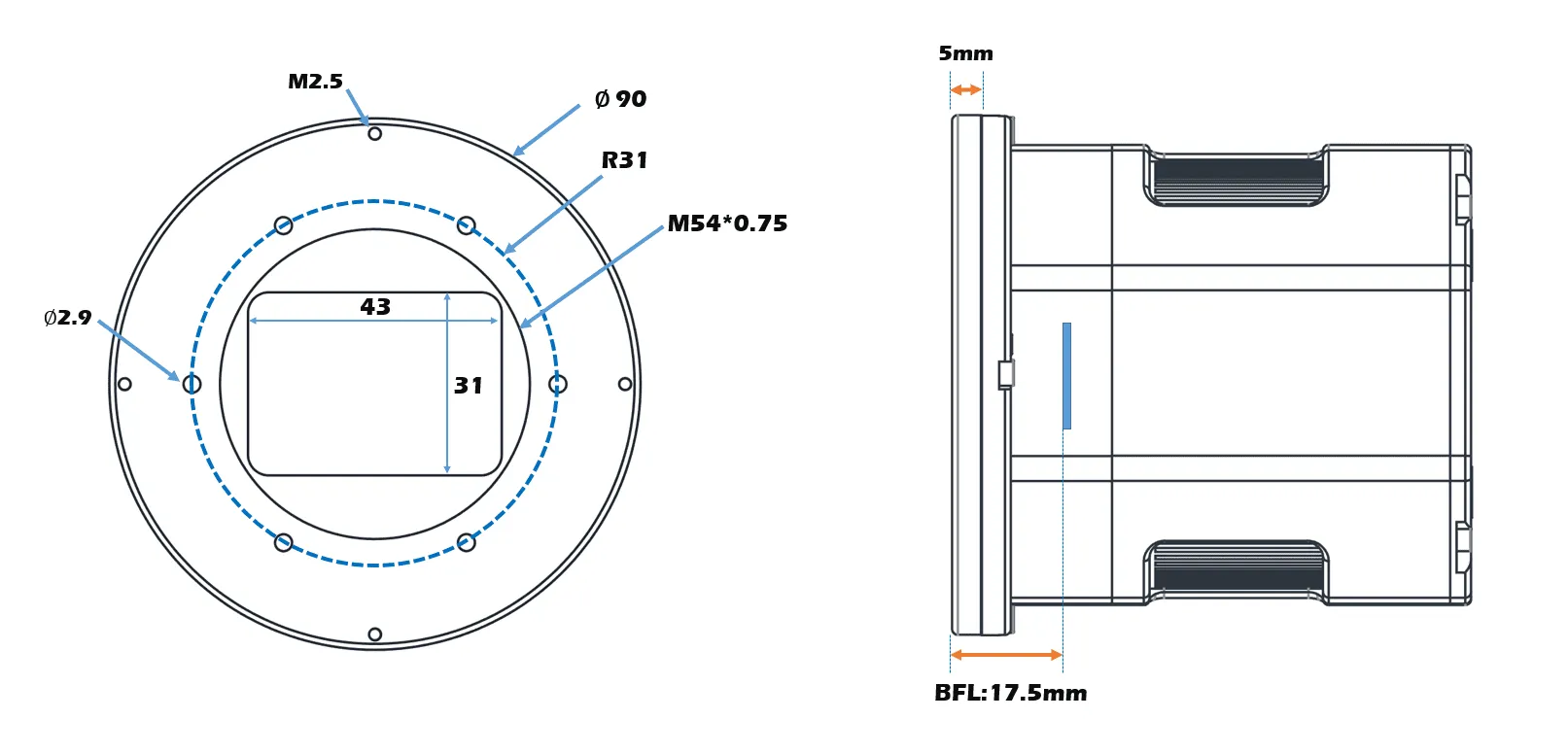

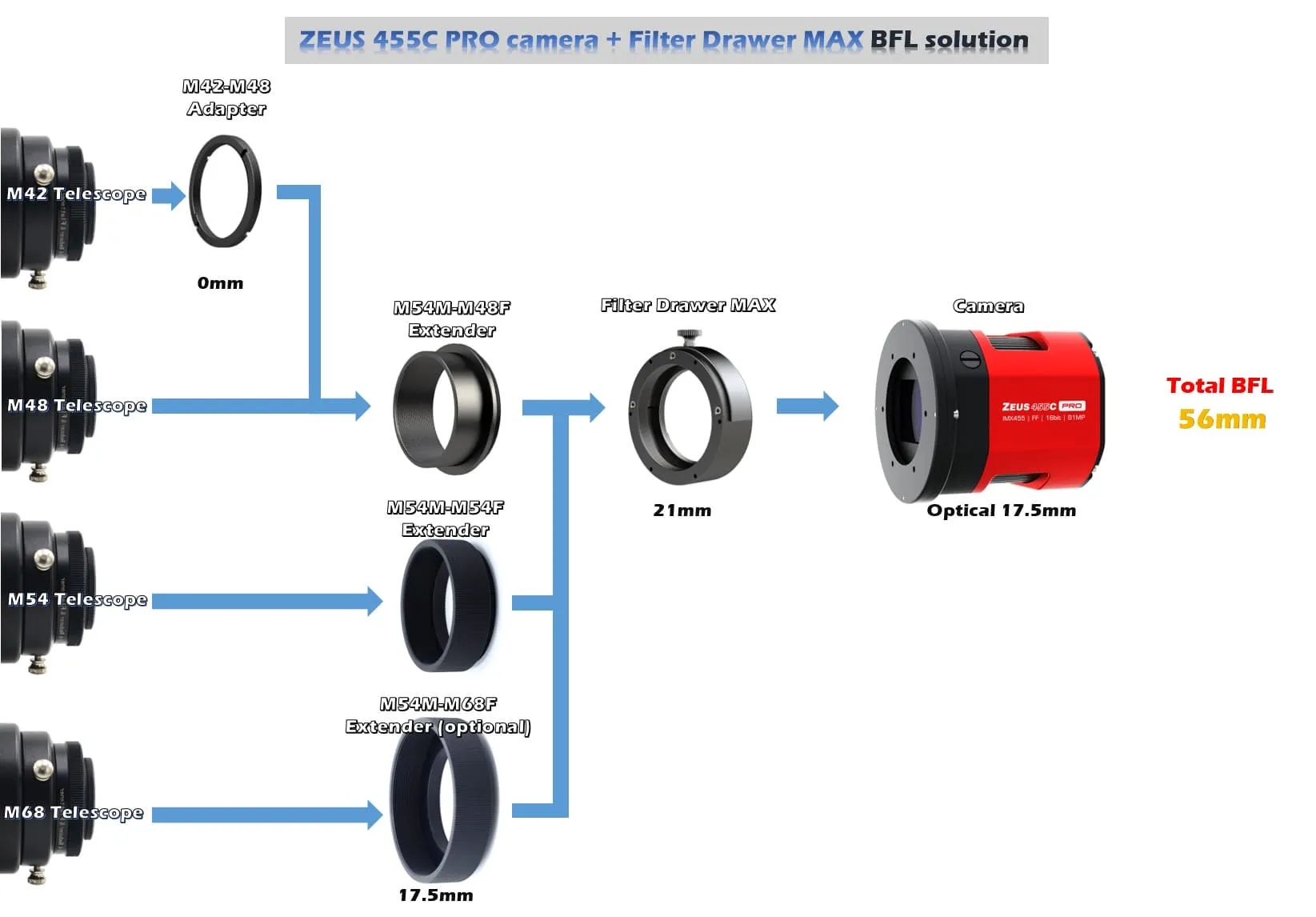

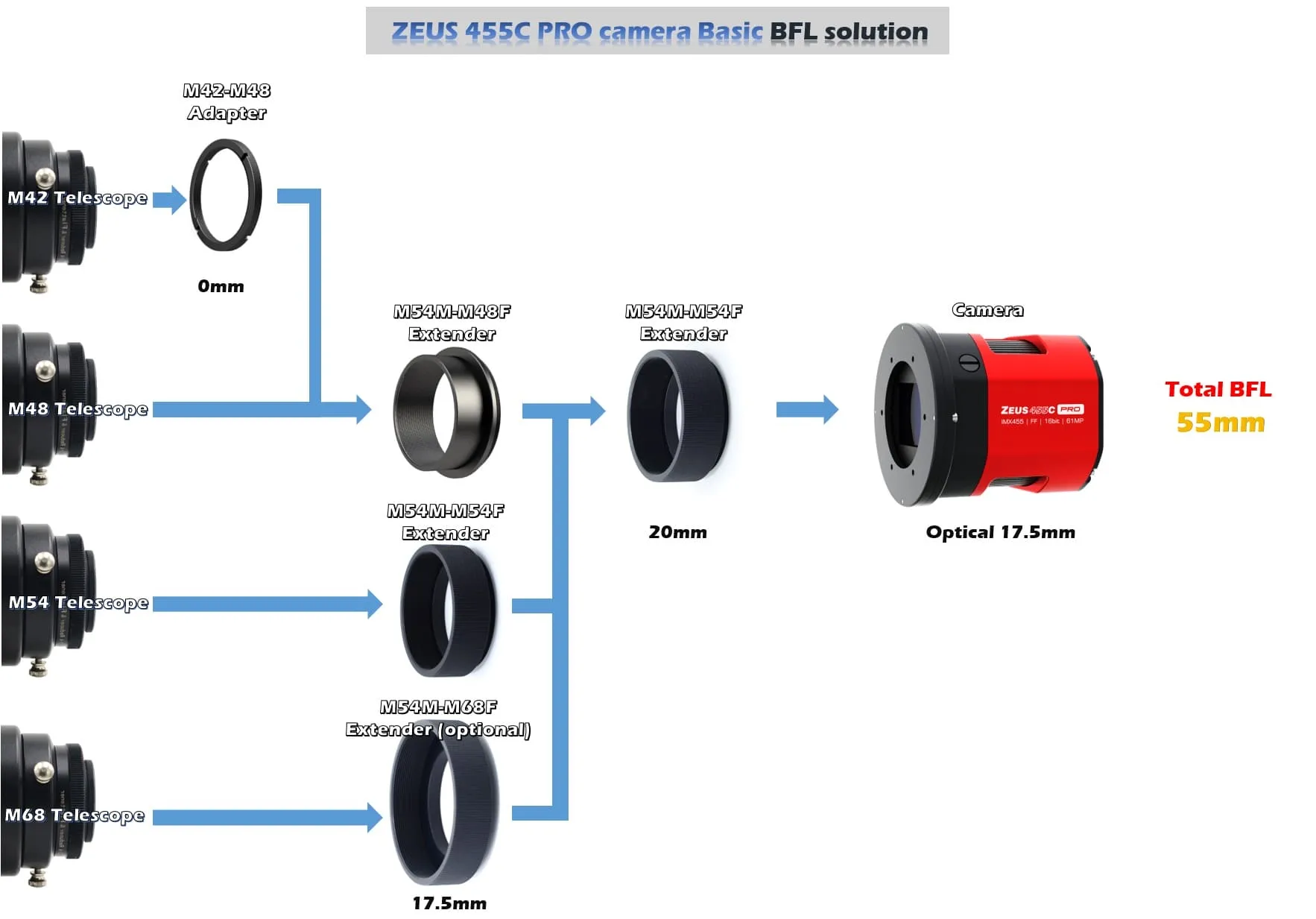

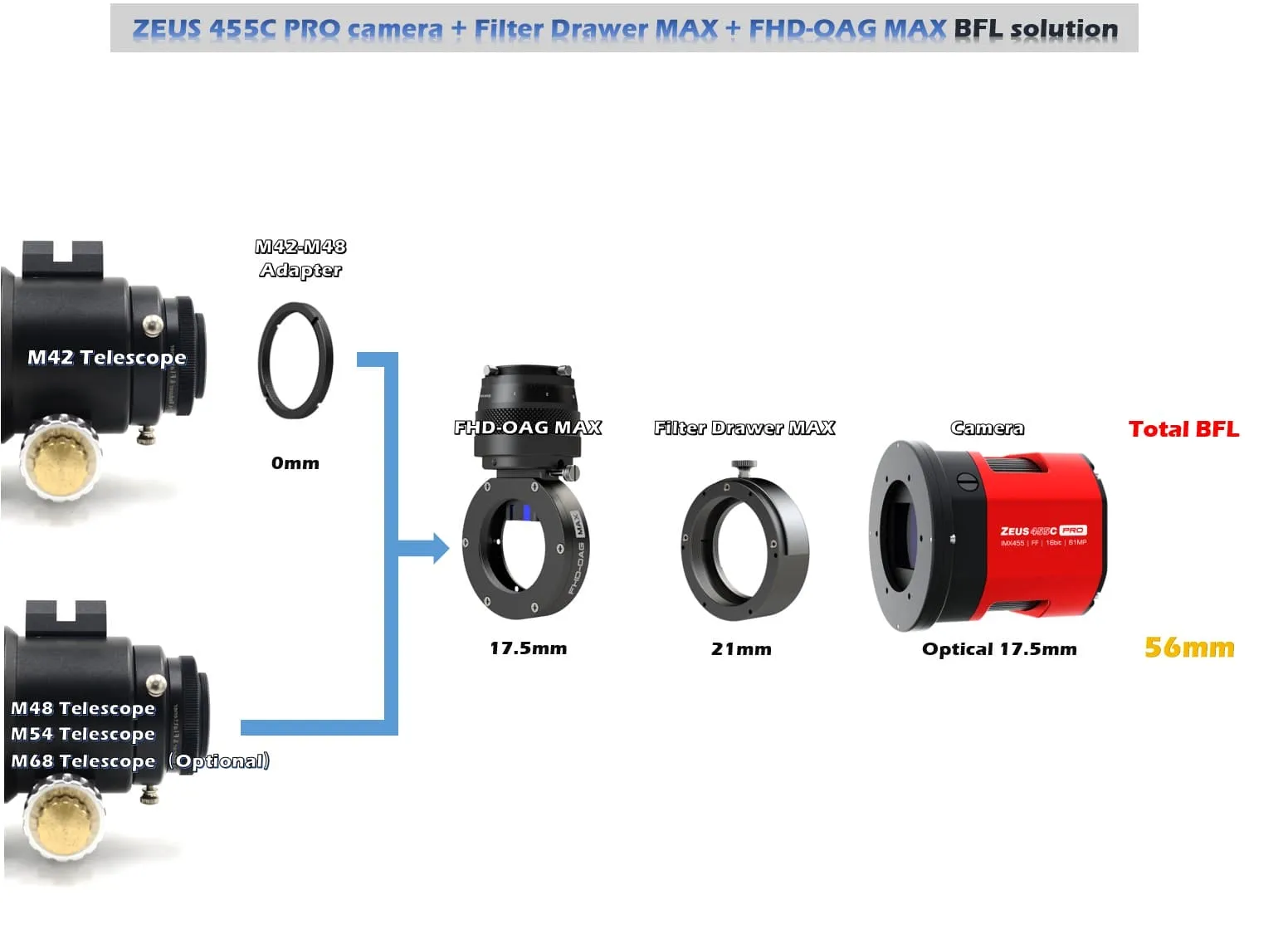

| Back Focal Length | 17.5 mm, 12.5 mm (without tilt plate) |
| Chip Size | 36 mm x 24 mm |
| Cooler Power Consumption | 12 V - 3 A Max |
| Cooling System | High-quality 2-stage TEC cooling |
| Data Port | Type-C USB 3.0/USB 2.0 |
| Delta T | 35 ℃ ± 2 ℃ (below ambient) |
| Diagonal | 43.3 mm |
| Diameter | 90 mm |
| Exposure Range | 32 µs-2000 s |

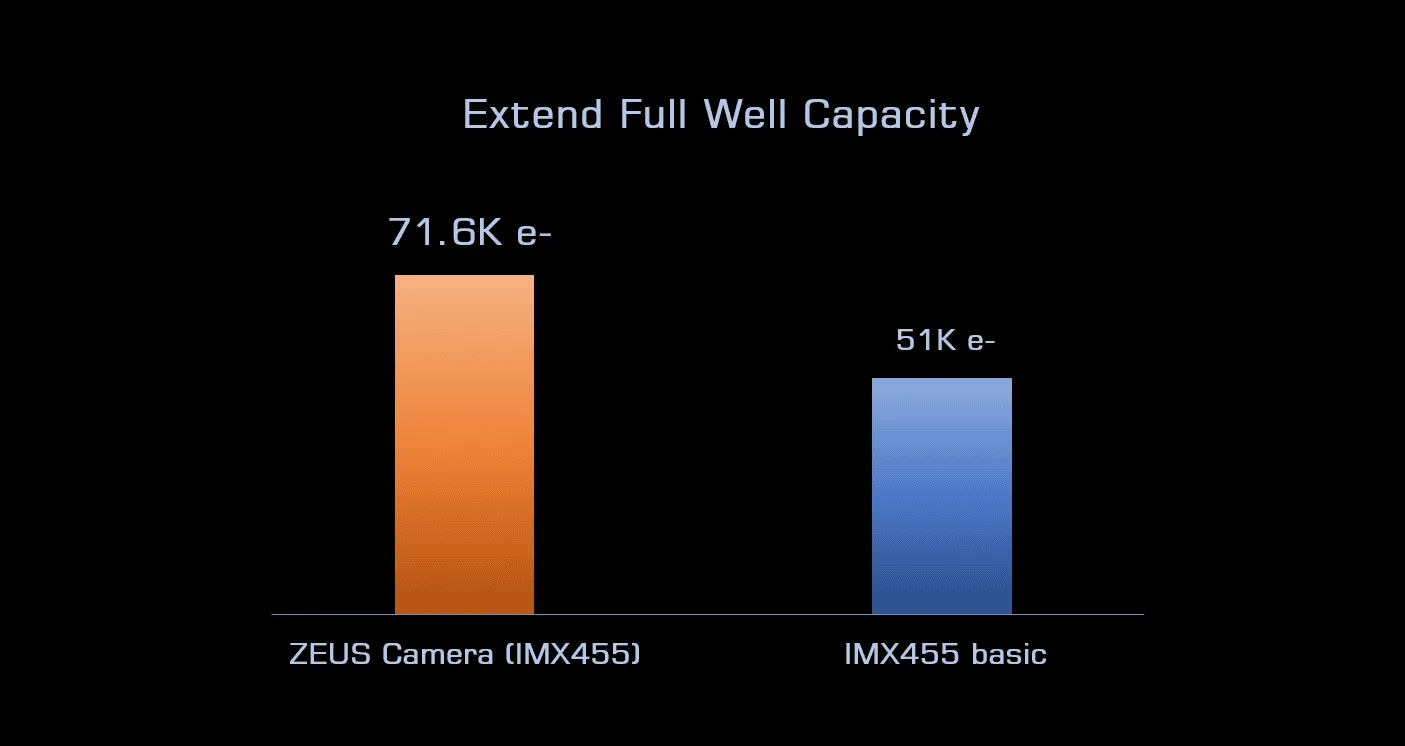

| Full Well | 71.6 k e⁻ |
| Max Resolution | 9576x6388 |
| Pixel Size | 3.76 µm |
| Protective Window | D55x2 mm AR Plus Coated |

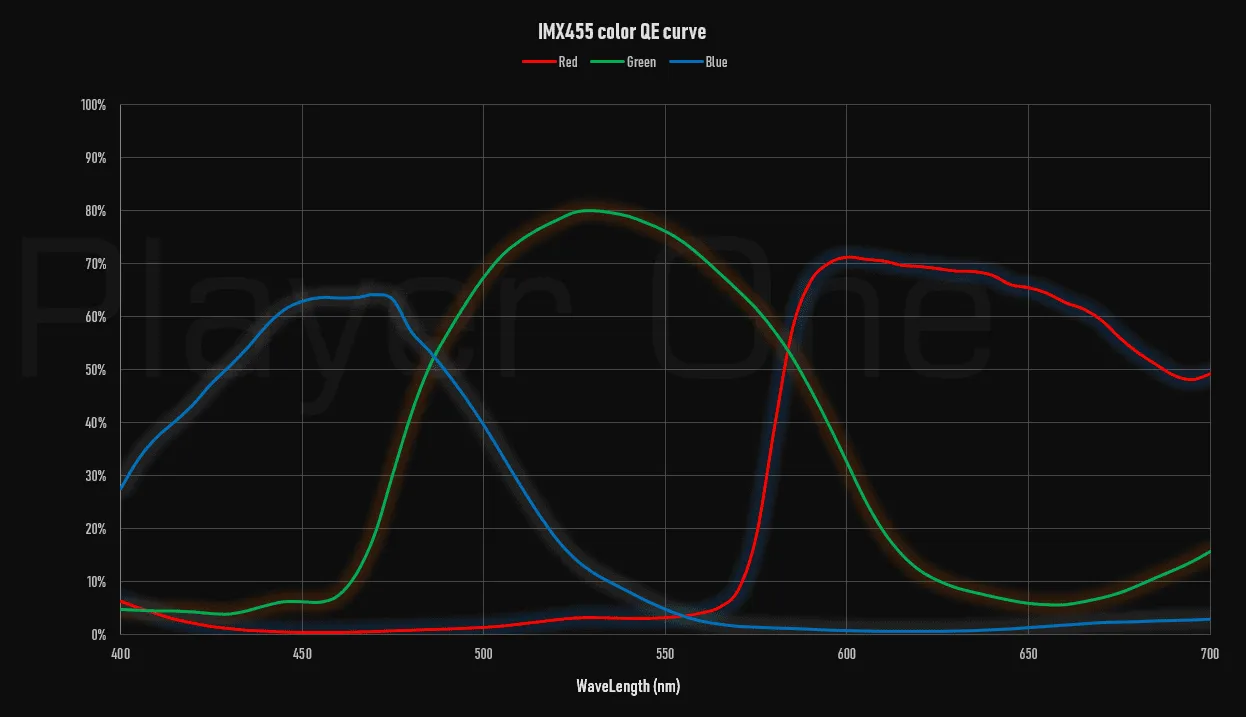

| QE Peak | ≈80% |
| Readout Noise | 4.2-1.27 e⁻ |
| Resolution and FPS | Performance via USB 3.0 Connection Resolution Raw8 Raw16 9576x6388 6.5 FPS 3.2 FPS |
| Sensor | Sony IMX455 CMOS (color) |
| Shutter | Rolling shutter |
| Total Pixels | 61 Mega Pixels |
| Weight | 650 g |
| Working Temp & Humidity | -10 ℃-60 ℃ & 0%-80% |
